- Place of Origin:CN;GUA
- Size:Prismatic
- Model Number:CR123A 123 123A CR123
- Brand Name:eunicell or OEM or eunicell
- Nominal Voltage:3V
- Battery Type:LiMnO2
- Nominal Capacity:1500 mAh
- color:for options
- quality:quality is guarangteed
- certificate:CE/ROHS/SGS
- fuction:use in cameras; also increasingly used in LED torches
- battery:cr123A

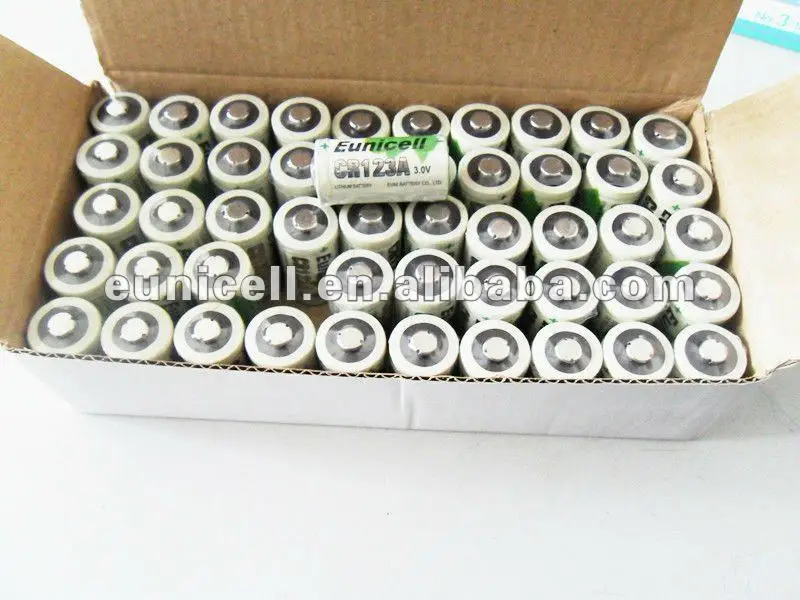

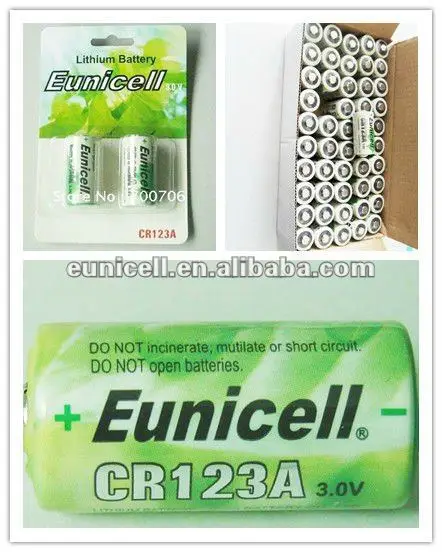

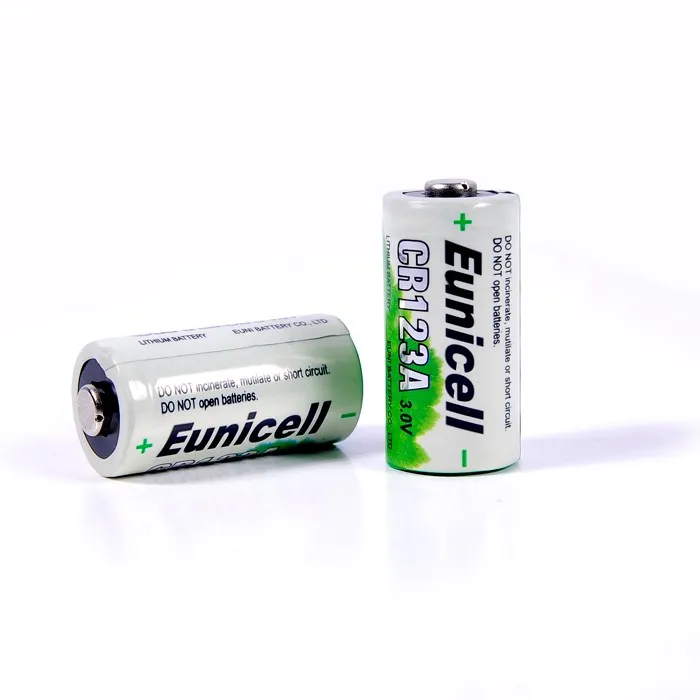

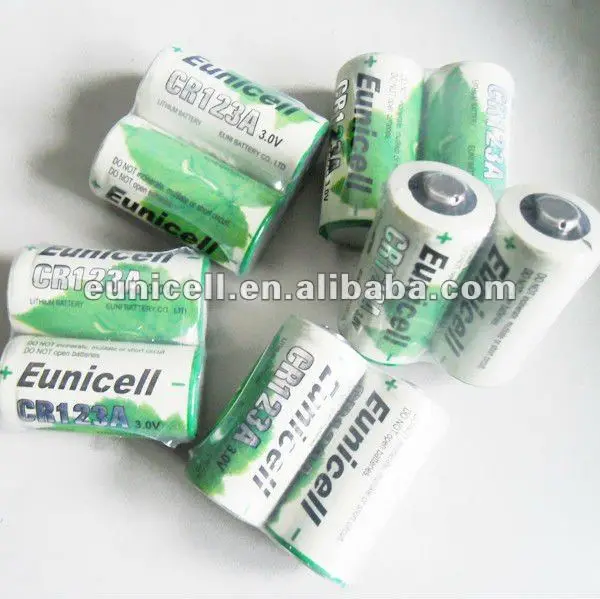

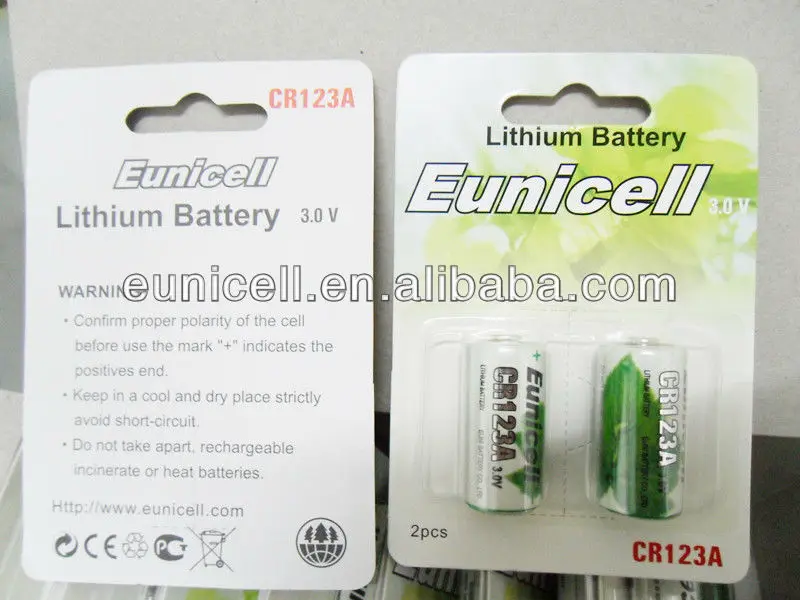

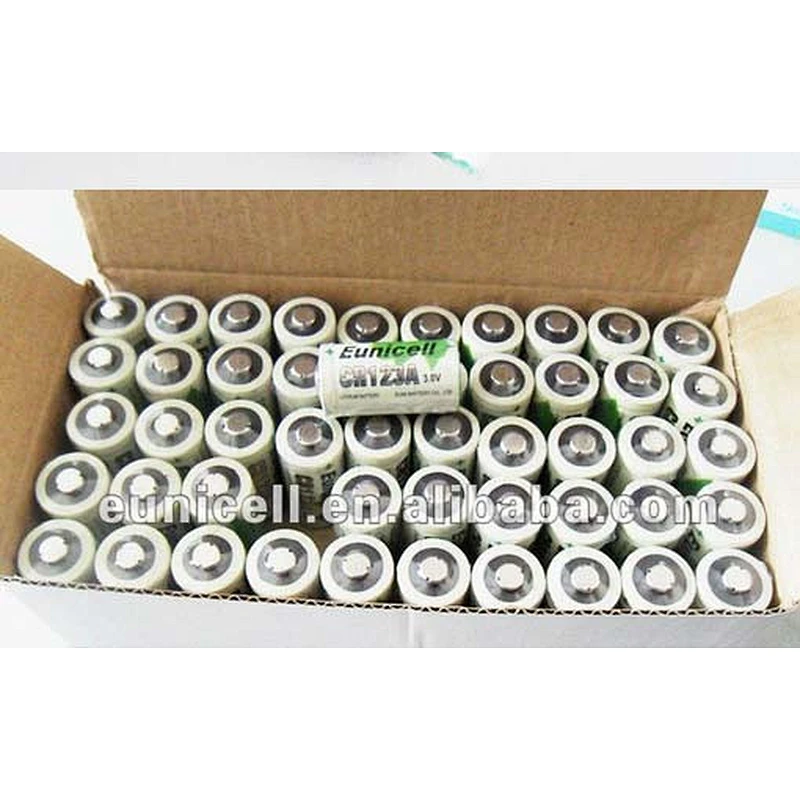

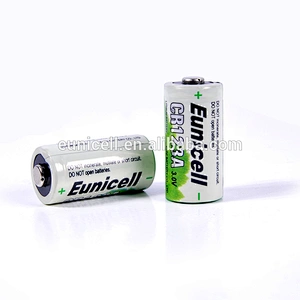

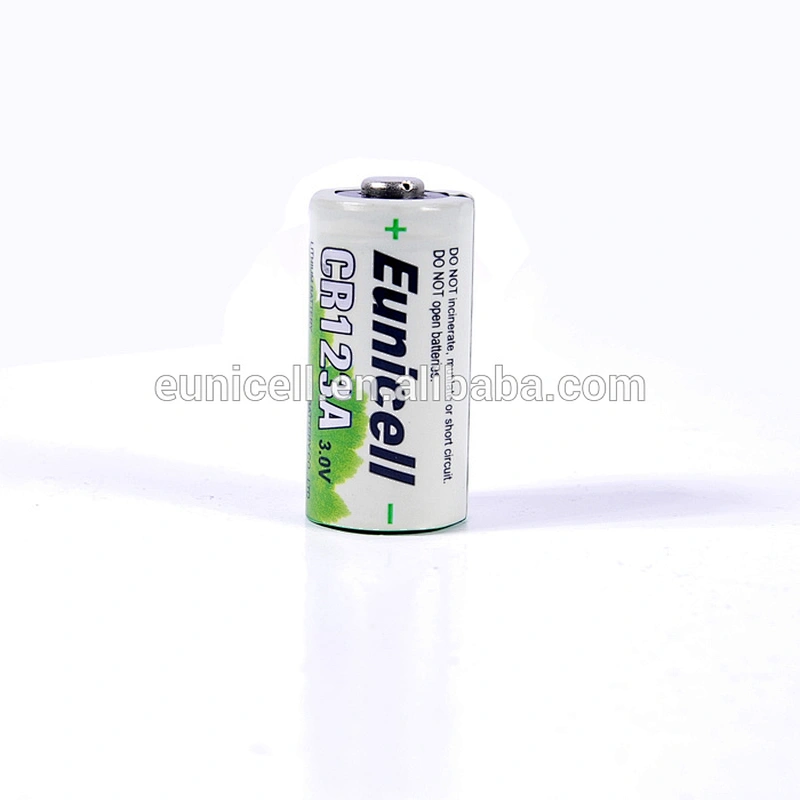

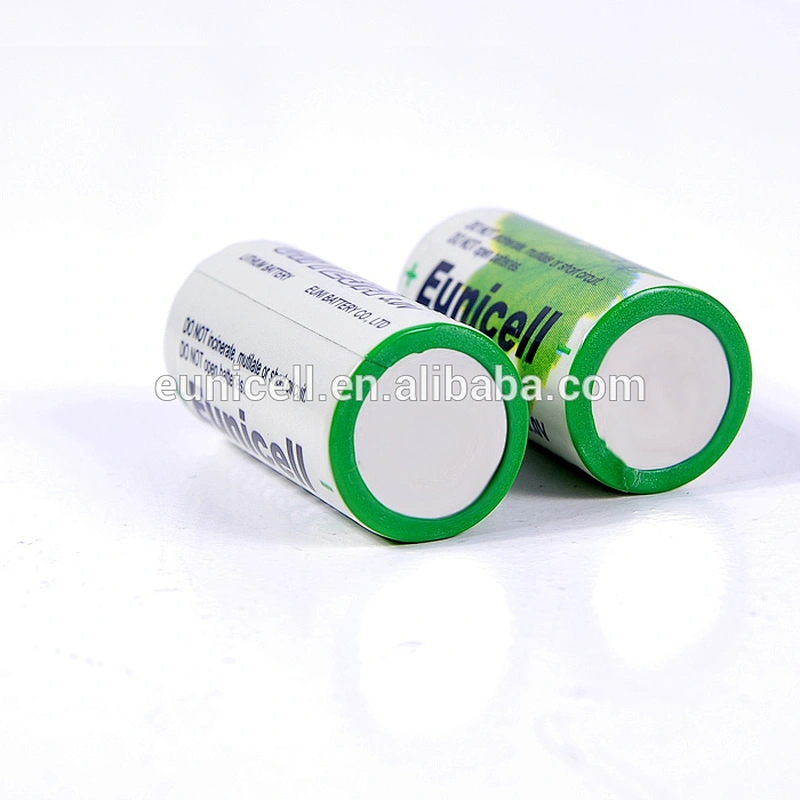

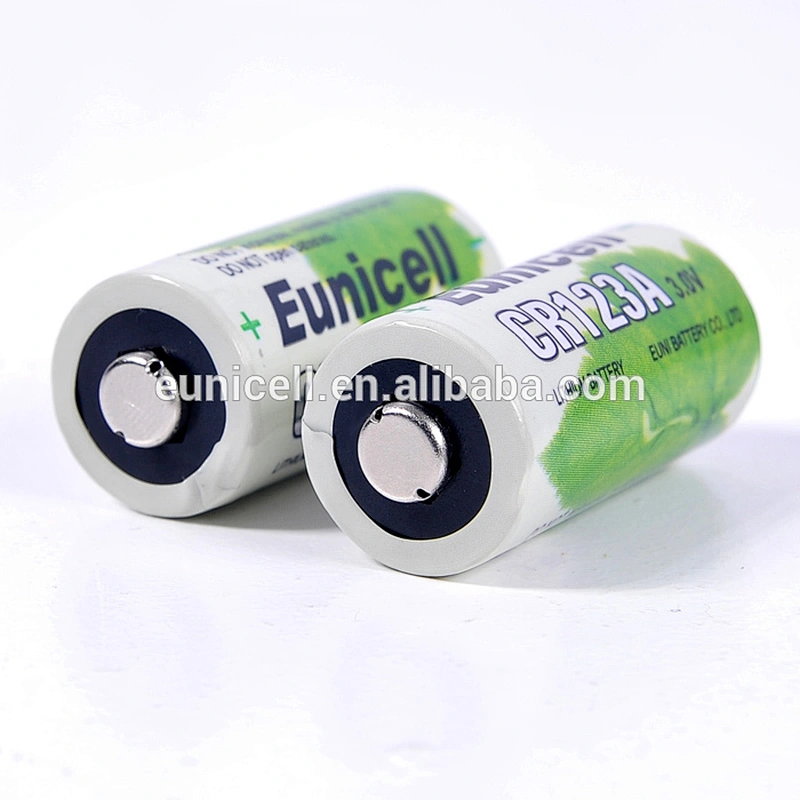

123 123A CR123 CR123A 3V Lithium Batteries
ITEM | SPECIFICATIONS | CONDITIONS |
Nominal voltage | 3.0 V | Standard discharge |
Nominal capacity | 1500 mAh | Standard discharge |
Diameter | 16.7mm | ±0.3mm |
Height | 34.2mm | ±0.3mm |
Maximum Continuous Discharge Current | 1000mA |
|
Maximum Pulse Discharge Current | 3000mA |
|
Off-load voltage | ≥2.0 V |
|
Standard weight | 16 g | Unit cell |
Ambient Temperature | -40~60°C |
|
Relative humidity | 65±20% |
|
Shell Life | ≥5 Year | Temperature 20~25°C |
Model | Nominal Voltage | Nominal Capacity | Discharge Current | End Voltage | Operating Temperature | Max. Diameter | Max. Height | Reference Weight |
CR14250 | 3V | 650mAh | 10mA | 2.0V | -20°C~+60°C | 14.5mm | 25.0mm | 10g |
CR14505 | 3V | 1500mAh | 10mA | 2.0V | -20°C~+60°C | 14.5mm | 50.5mm | 17g |
CR17335 | 3V | 1500mAh | 10mA | 2.0V | -20°C~+60°C | 17.0mm | 33.5mm | 16g |
CR17450 | 3V | 2000mAh | 10mA | 2.0V | -20°C~+60°C | 17.0mm | 45.0mm | 25g |
CR17505 | 3V | 2300mAh | 10mA | 2.0V | -20°C~+60°C | 17.0mm | 50.5mm | 28g |
CR123A | 3V | 1500mAh | 10mA | 2.0V | -20°C~+60°C | 17.0mm | 34.5mm | 16g |
CR1/3N | 3V | 160mAh | 2mA | 2.0V | -20°C~+60°C | 11.6mm | 10.8mm | 3.3g |
CR2 | 3V | 750mAh | 10mA | 2.0V | -20°C~+60°C | 15.6mm | 27.0mm | 11g |
CR-P2 | 6V | 1400mAh | 10mA | 4.0V | -20°C~+60°C | null | null | 34g |
2CR5 | 6V | 1400mAh | 10mA | 4.0V | -20°C~+60°C | null | null | 34g |
CR-V3 | 3V | 3000mAh | 20mA | 2.0V | -20°C~+60°C | null | null | 34g |
