- Weight:9.97g approx
- Chemical System:alkaline zinc manganese
- Size:13*25.2mm
- Used:dog model battery
4LR44 4AG13 4A76 6V alkaline battery
Specification:
1. replacement of 4AG13,4A76
2. Chemical system: Zinc Manganese Dioxide
3. Dimensions: 13*25.2MM
4. Shelf life time: 1 year after delivery under proper storage condition
5. Temperature:20+/=2 C
6. 95% of capacity will be maintained after 12 months storage time.
Certificates:
CE, ROHS, MSDS, etc.
Warranty:12 months
Model | IEC Design | Dimension | Nominal Voltage (V) | Nominal capacity | Standard Current | Weight | |
Diameter | Hight | ||||||
L1560 | / | 15.4 mm | 6.05 mm | 1.5V | 164mAh | 0.22mA | 3.26g |
L1325 | 4LR44 | 13.0 mm | 25.2 mm | 6.0V | 165mAh | 0.22mA | 9.57g |
L1028 | 23A | 10.3 mm | 28.8 mm | 12.0V | 59mAh | 0.10mA | 7.93g |
L1022 | 10A | 10.3 mm | 22.2 mm | 9.0V | 58mAh | 0.10mA | 6.05g |
L1016 | 11A | 10.3 mm | 16.0 mm | 6.0V | 58mAh | 0.10mA | 4.36g |
L828 | 27A | 8.0 mm | 28.8 mm | 12.0V | 20mAh | 0.05mA | 4.44g |
L822 | / | 8.0 mm | 22.2 mm | 9.0V | 21mAh | 0.05mA | 3.40g |

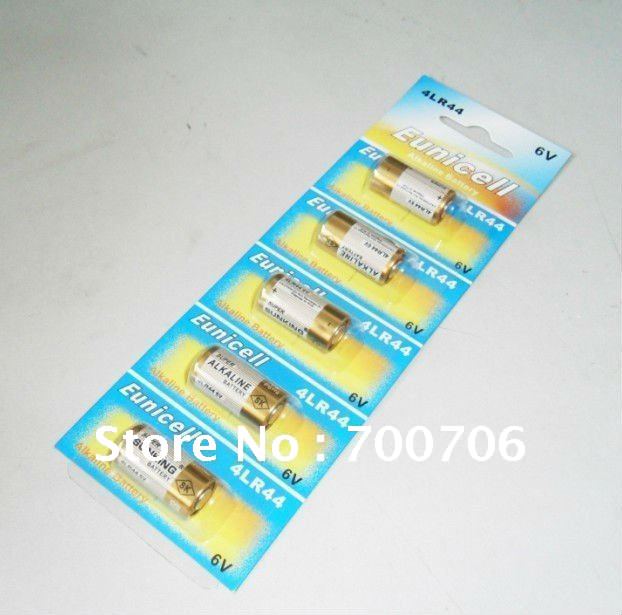

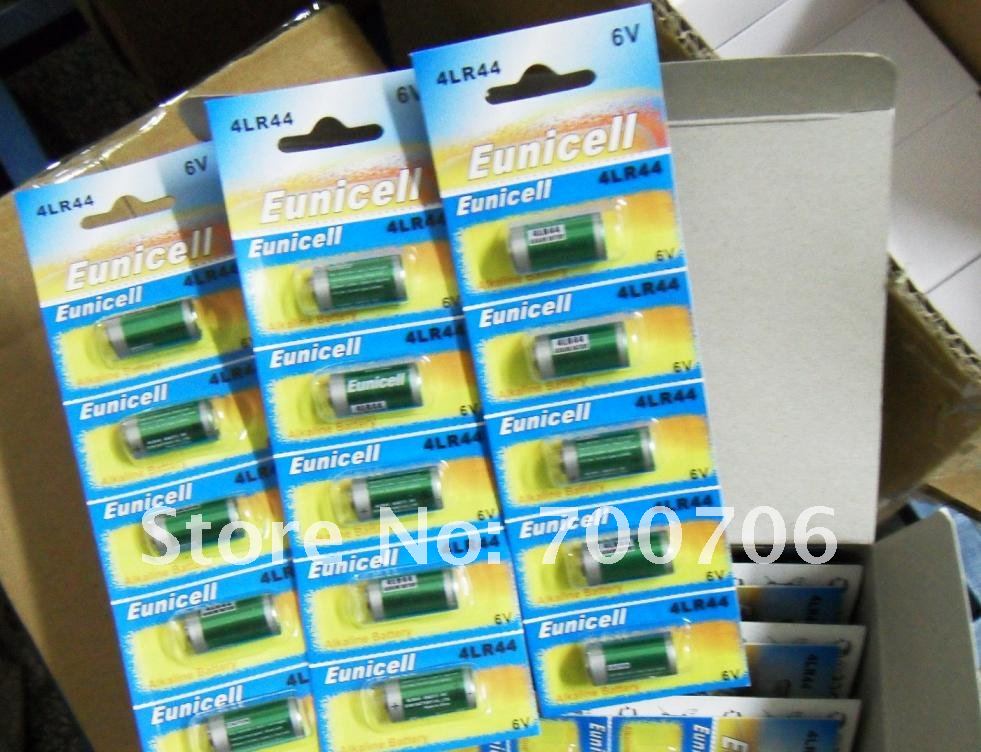

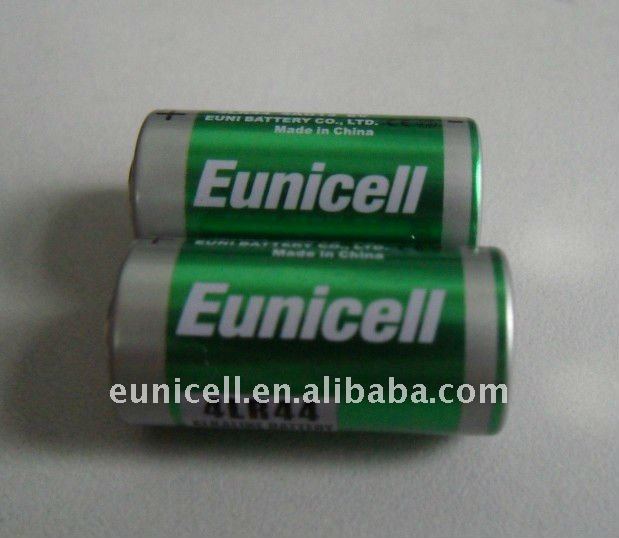

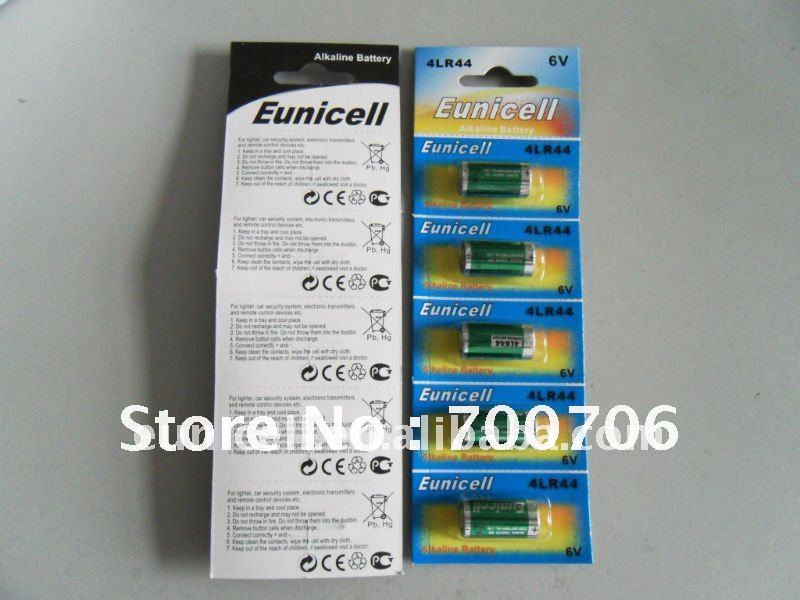

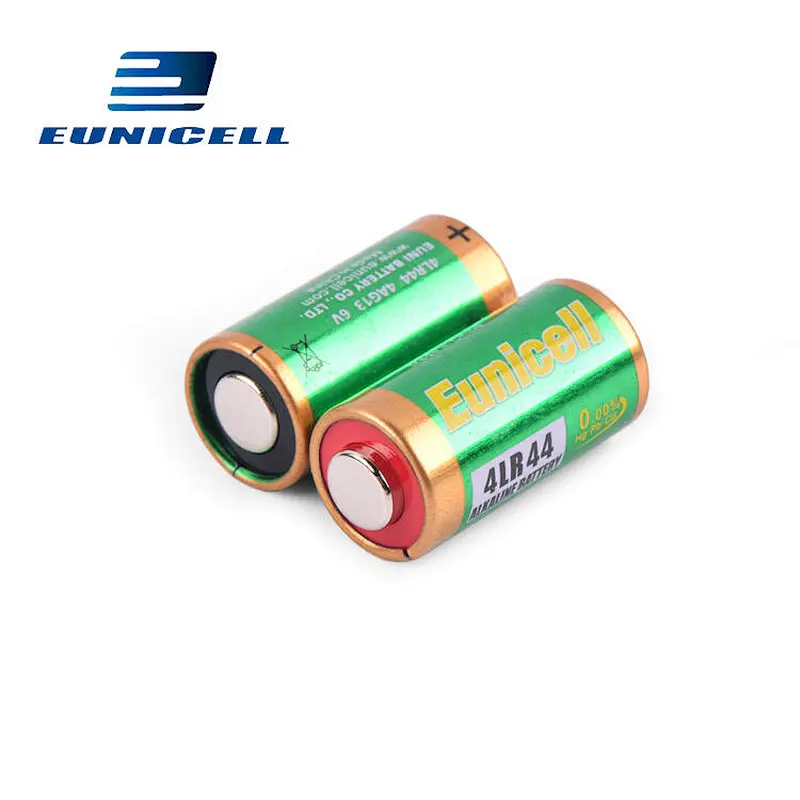

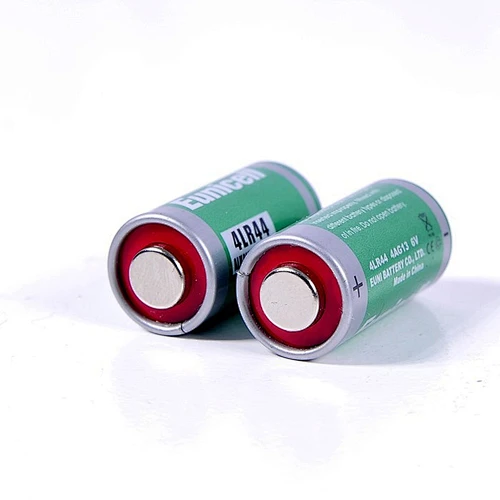

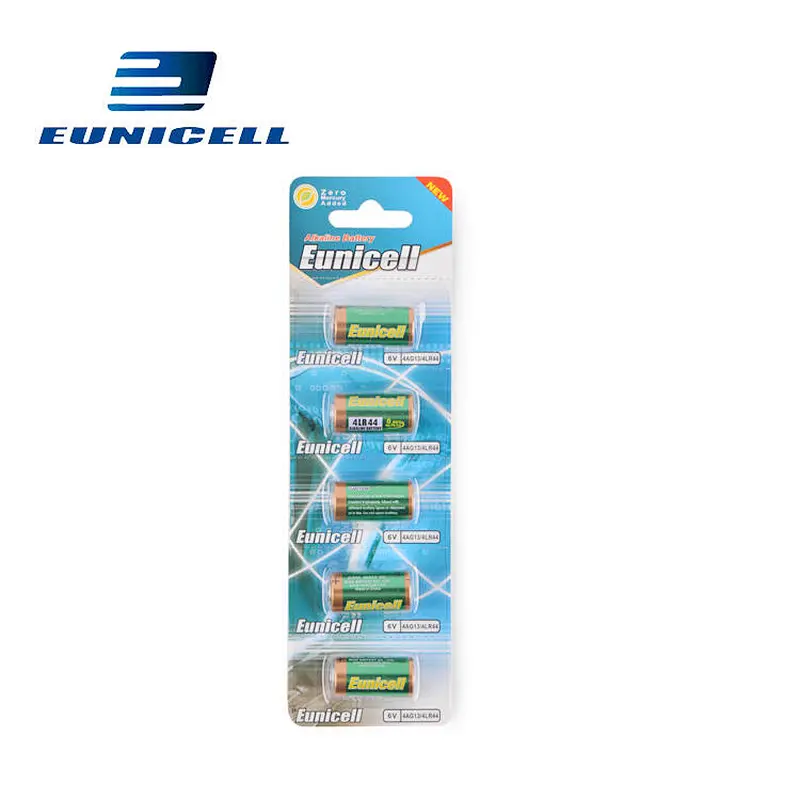

Pictures: as below
