- Battery Type:Zn/MnO2
- Size:11.6*3.1mm
- battery type:alkaline button cell
- Diameter:11.6mm
- High:3.1mm
- Application:Toys
- Application:Power Tools
- Application:Home Appliances
- Application:Consumer Electronics
- Shape:Button
- Place of Origin:CN;GUA
- Battery Size:AG10/LR1130
- Brand Name:EUNICELL
- Certification:CE/ROHS/REACH/SGS/MSDS
- Model Number:AG10 LR1130

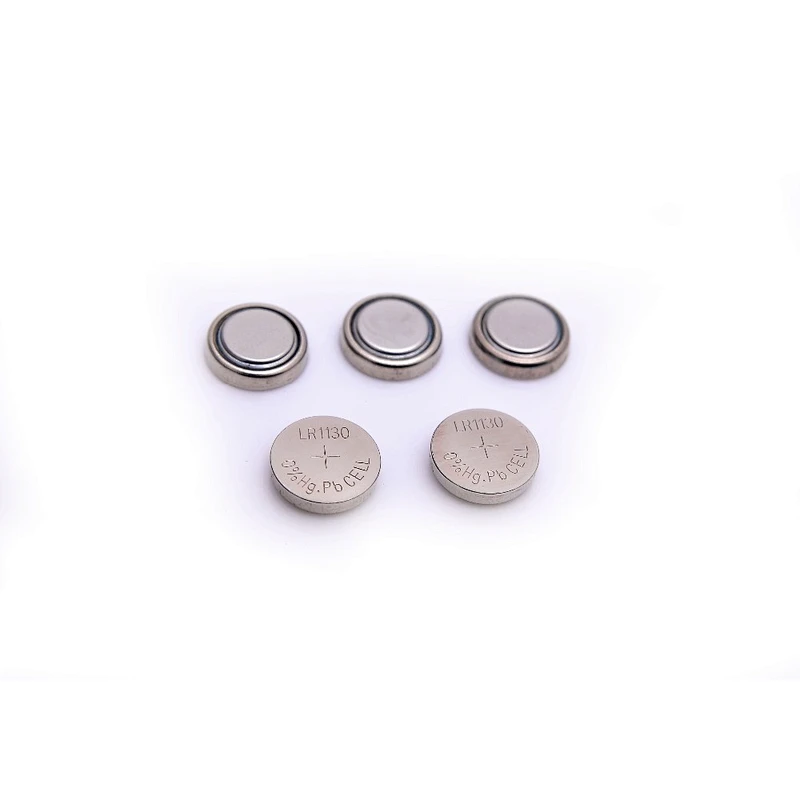

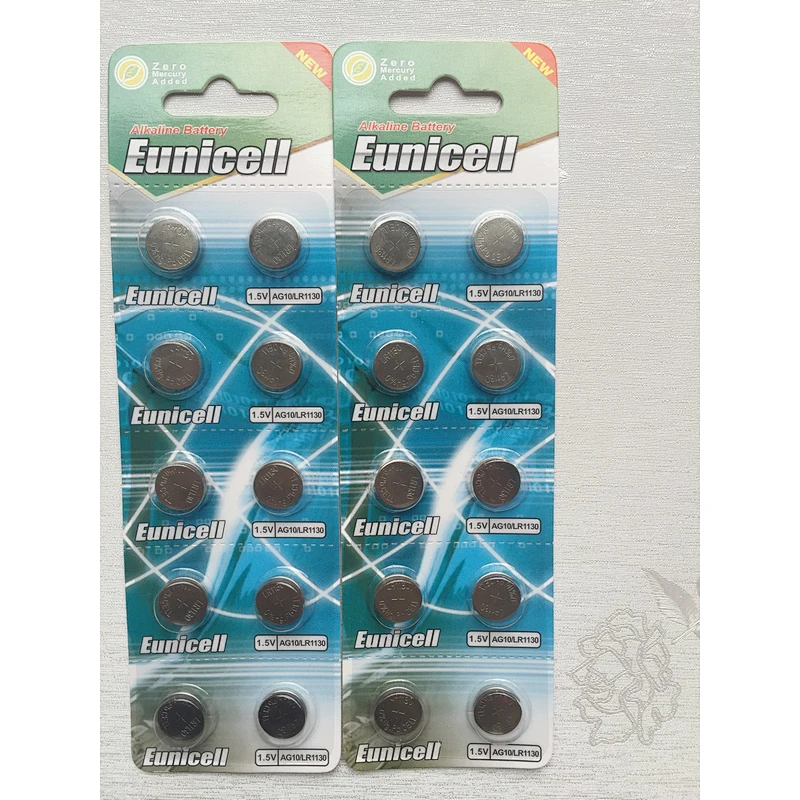

AG10 LR54 LR1130 1.5v button cell battery
1) Size: AG10
2) Cross reference: LR1130, V10GA, 189
2) Nominal voltage: 1.5V
3) Nominal capacity: 115mAh
4) Dimensions: Φ10 x 5.4mm
5) Approx. Weight: 1.65g
6) Applications: Watch, calculator, cameras, music card, flash lamp, electronic notebook, Electric toys, game and other electric products.
7) Models: A521, AG1, AG2, AG3, AG4, AG5, AG6, AG7, AG8, AG9, AG10, AG11, AG12, AG13, 4AG13, 625A, 27A, 23A.
Model | No. | Dia (mm) | H (mm) | Voltage (V) | Capacity(mAh) | (Ω) | Dishcarg time(hrs) | Off Voltage(V) | Weight (g) |
LR621,364 | AG1 | 6.75 | 2.00 | 1.5 | 13 | 68K | 630 | 0.9 | 0.25 |
LR726,396 | AG2 | 7.85 | 2.50 | 1.5 | 26 | 22K | 490 | 0.9 | 0.44 |
LR41,392 | AG3 | 7.85 | 3.50 | 1.5 | 35 | 22K | 670 | 0.9 | 0.57 |
LR626,377 | AG4 | 6.75 | 2.50 | 1.5 | 18 | 47K | 690 | 0.9 | 0.31 |
LR754,393 | AG5 | 7.85 | 5.30 | 1.5 | 58 | 22K | 920 | 0.9 | 0.9 |
LR920,371 | AG6 | 9.45 | 2.00 | 1.5 | 32 | 15K | 320 | 0.9 | 0.55 |
LR926,395 | AG7 | 9.45 | 2.50 | 1.5 | 46 | 15K | 400 | 0.9 | 0.64 |
LR1120,391 | AG8 | 11.55 | 2.00 | 1.5 | 45 | 15K | 570 | 0.9 | 0.79 |
LR936 | AG9 | 9.45 | 3.50 | 1.5 | 56 | 15K | 550 | 0.9 | 0.86 |
LR1130,389 | AG10 | 11.55 | 3.00 | 1.5 | 68 | 15K | 850 | 0.9 | 1.11 |
LR721,362 | AG11 | 7.85 | 2.00 | 1.5 | 20 | 7.5K | 415 | 0.9 | 0.38 |
LR43,386 | AG12 | 11.55 | 4.10 | 1.5 | 100 | 7.5K | 610 | 0.9 | 1.47 |
LR44,357 | AG13 | 11.55 | 5.3 | 1.5 | 148 | 7.5K | 880 | 0.9 | 1.92 |
East(Shenzhen)Technology Co.,ltd (Eunicell Battery )is a high-tech enterprise specializing in developing, developing, producing and selling batteries, which belong to two factories, such as production buckle lithium manganese dioxide, buckle type zinc manganese alkaline, cylindrical carbon, alkaline battery and so on.
