- Battery Type:LiMnO2
- Size:23.5.4mm
- Load Standard:15
- Discharger Time:2450h
- Application:Toys
- Application:Power Tools
- Application:Home Appliances
- Application:Consumer Electronics
- Application:Car keys, Remote control
- Shape:Button
- Place of Origin:CN;GUA
- Battery Size:23*5.4mm
- Brand Name:Eunicell
- Certification:CE/ROHS/REACH/SGS/MSDS
- Model Number:CR2354/DL2354/BR2354

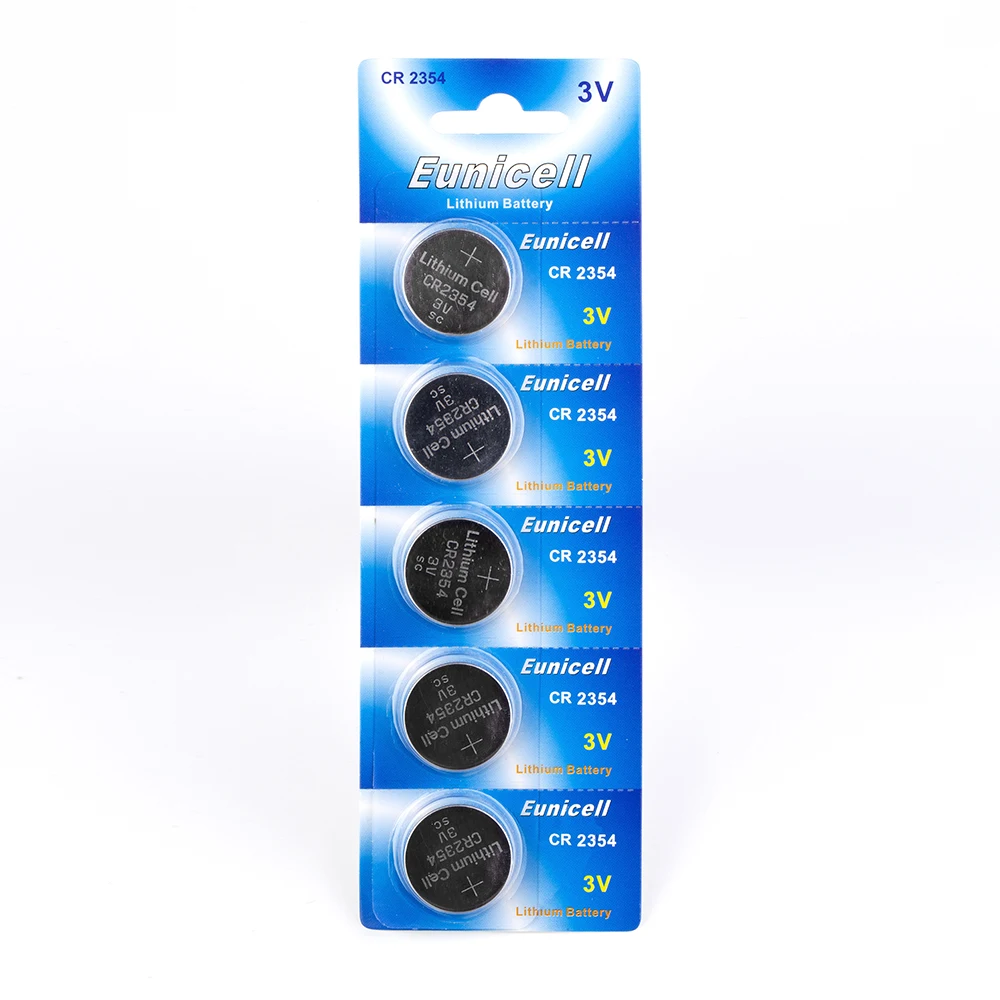

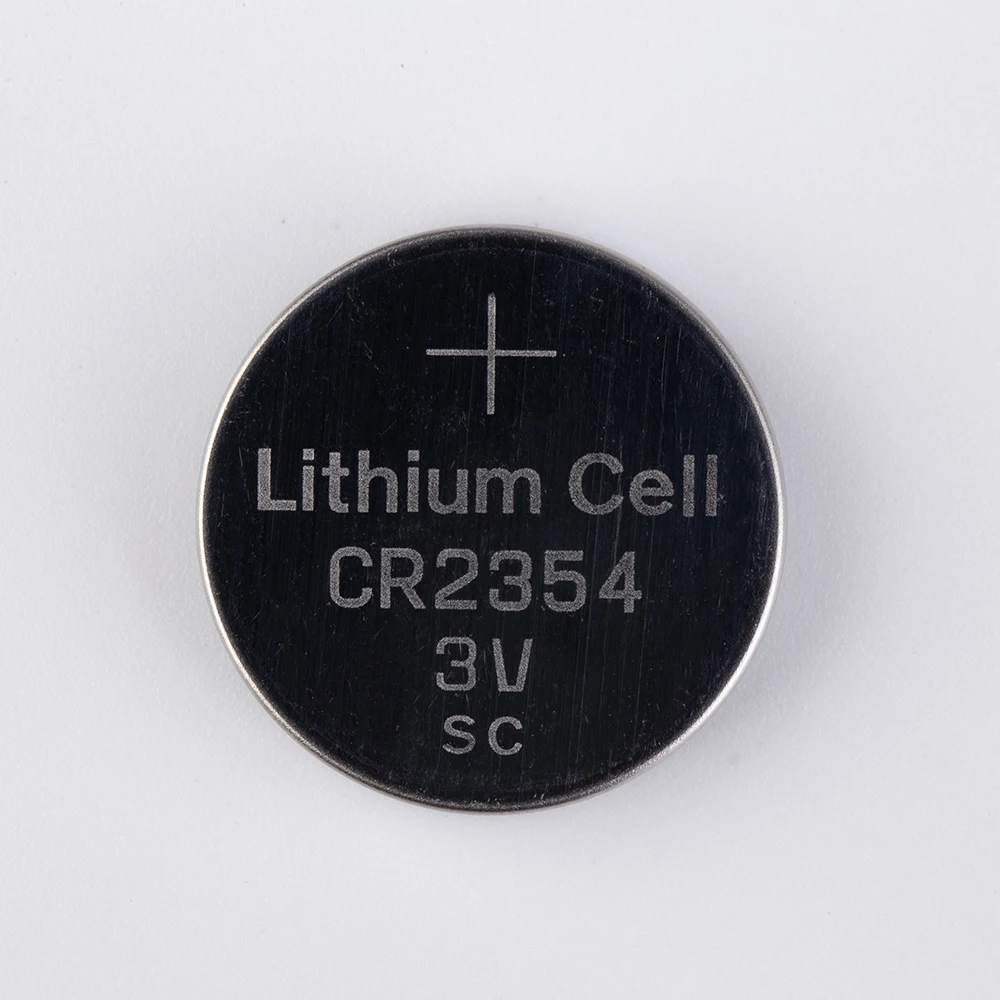

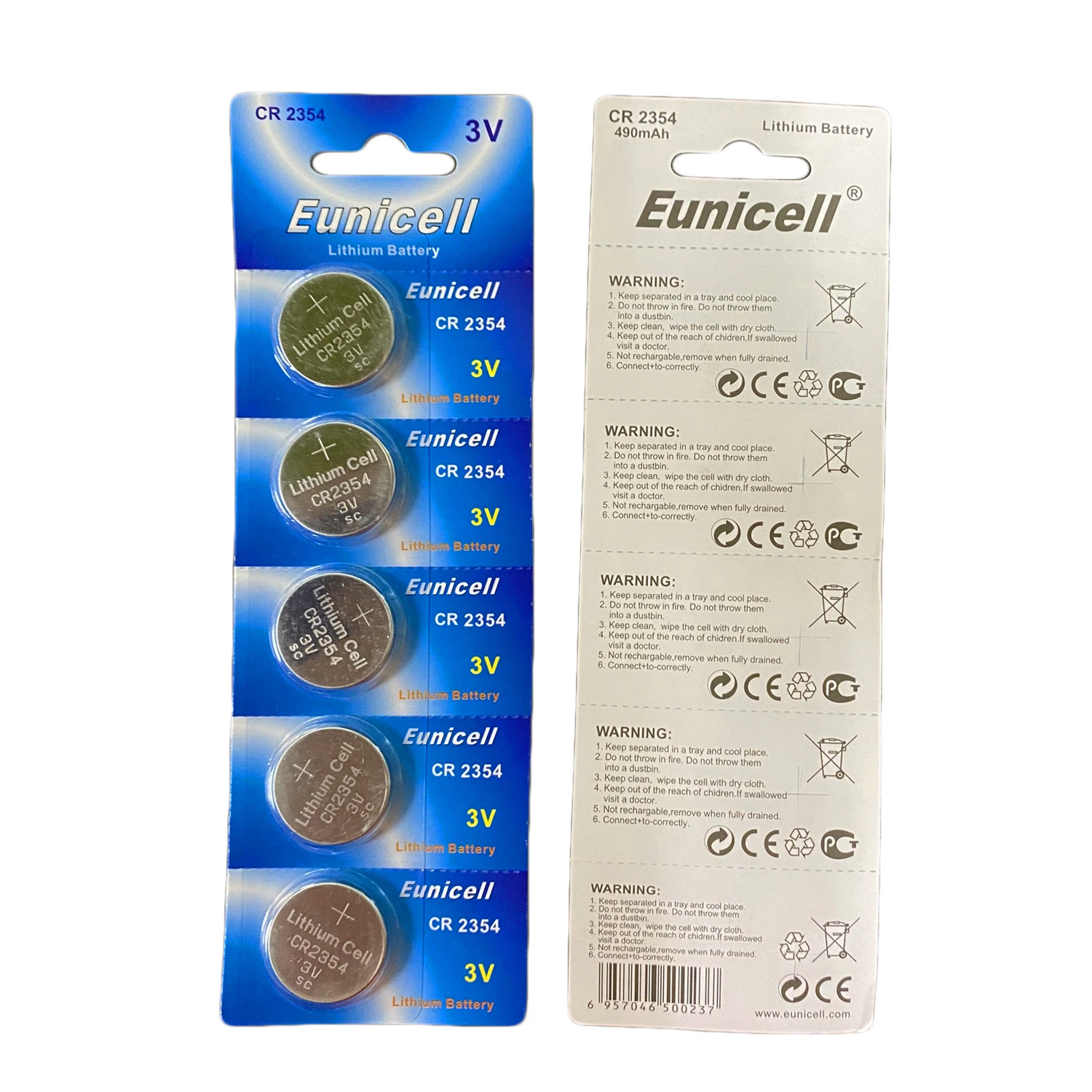

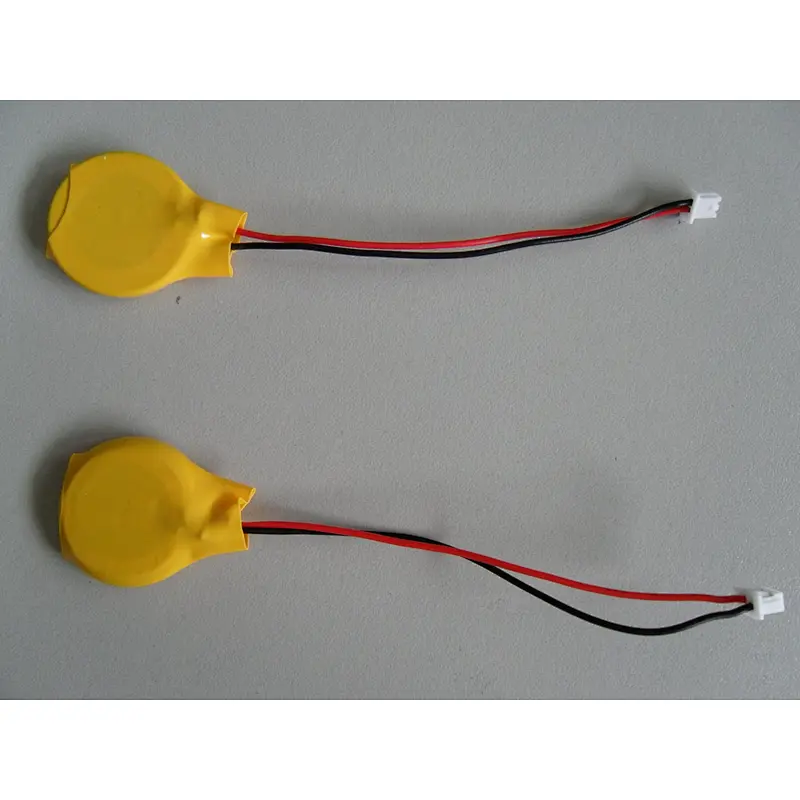

3V CR2354 Lithium Batterywith solder pins tabs battery for VX510

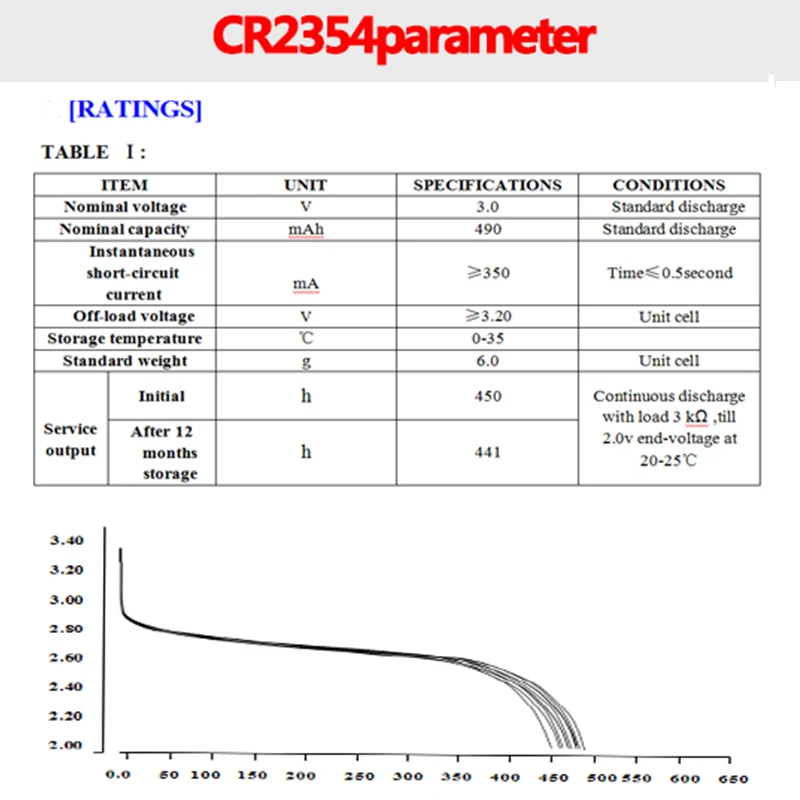

Technical Parameter:
Voltage: 3.0V
- Capacity: 490mAh
- Battery type: Lithium
- Cell: CR2354
- Certificates: CE, ROHS, SGS, TUV, MSDS
- Brand: Eunicell or SC
- Warranty: 1 Year
Battery Type | 3V CR2354 Lithium Button Cell with solder tabs pins |
Brand Name | EUNICELL or OEM |
Model | CR2354 |
Voltage | 3V |
Material | Lithium Manganese Battery |
Capacity | 530mAh |
Certifications | CE ROHS SGS MSDS |
Size | 23.0mm*5.4mm |
Jacket | Matel Cover |
Warranty | 5 years |
MOQ | No MOQ for EUNICELL brand,and NO MOQ for tray package |
Samples Service | Free samples available |
If Rechargeable | No |
Storage life | Storage life of batteries are five years long at 20℃±2℃ and RH 60±15% |
Package | Bulk pack, 1pc card, 2pcs card, 5pcs card |
Shipping | 1-2 working days for samples; 15-20 days for batch goods. |
Payment Term | T/T, Western Union, Paypal |
Item | EUNICELL 3V Battery CR2016 CR2025 CR2032 CR2320 Lithium Button Battery |
| Model | Nominal Voltage(V) | Norminal Capacity(mAh) | Standard Discharge Load(kΩ) | End Voltage(V) | Test Temperature(°C) | Max. Diameter(mm) | Max. Height(mm) | Reference Weight(g) |
| CR2016 | 3 | 75 | 30 | 2.0 | 23±3 | 20.0 | 1.6 | 1.8 |
| CR2025 | 3 | 150 | 15 | 2.0 | 23±3 | 20.0 | 2.5 | 2.4 |
| CR2032 | 3 | 210 | 15 | 2.0 | 23±3 | 20.0 | 3.2 | 3.0 |
| CR2320 | 3 | 175 | 15 | 2.0 | 23±3 | 23.0 | 2.0 | 3.0 |
| CR2325 | 3 | 210 | 15 | 2.0 | 23±3 | 23.0 | 2.5 | 3.3 |
| CR2330 | 3 | 250 | 15 | 2.0 | 23±3 | 23.0 | 3.0 | 4.0 |
| CR2354 | 3 | 490 | 15 | 2.0 | 23±3 | 23.0 | 5.540 | 6.0 |
| CR2450 | 3 | 540 | 15 | 2.0 | 23±3 | 24.5 | 5.0 | 6.5 |
| CR2477 | 3 | 1050 | 7.5 | 2.0 | 23±3 | 24.5 | 7.70 | 8.5 |
Item No. | Normail Voltage (V) | Capacity(mAh) | Dimension(mm) | Weight(g) |
3V Lithium Manganese Dioxide Battery CR series | ||||
CR927 | 3.0 | 30 | 9.5*2.7 | 0.6 |
CR1025 | 3.0 | 30 | 10.0*2.5 | 0.6 |
CR1130 | 3.0 | 48 | 11.6*3.0 | 0.6 |
CR1212 | 3.0 | 18 | 12.5*1.2 | 0.7 |
CR1216 | 3.0 | 25 | 12.5*1.6 | 0.7 |
CR1220 | 3.0 | 40 | 12.5*2.0 | 0.85 |
CR1225 | 3.0 | 48 | 12.5*2.5 | 0.93 |
CR1530 | 3.0 | 95 | 15.0*3.0 | 1.5 |
CR1616 | 3.0 | 50 | 16.0*1.6 | 1.2 |
CR1620 | 3.0 | 70 | 16.0*2.0 | 1.2 |
CR1625 | 3.0 | 90 | 16.0*2.5 | 1.4 |
CR1632 | 3.0 | 120 | 16.0*3.2 | 2.0 |
CR2016 | 3.0 | 75 | 20.0*1.6 | 1.80 |
CR2025 | 3.0 | 150 | 20.0*2.5 | 2.50 |
CR2025 | 3.0 | 160 | 20.0*2.5 | 2.50 |
CR2025 | 3.0 | 170 | 20.0*2.5 | 2.50 |
CR2032 | 3.0 | 200 | 20.0*3.2 | 3.00 |
CR2032 | 3.0 | 210 | 20.0*3.2 | 3.00 |
CR2032 | 3.0 | 230 | 20.0*3.2 | 3.00 |
CR2050 | 3.0 | 300 | 20.0*5.0 | 4.20 |
CR2430 | 3.0 | 290 | 24.5*3.0 | 4.50 |
CR2450 | 3.0 | 550 | 24.5*5.0 | 6.50 |
CR2450 | 3.0 | 620 | 24.5*5.0 | 6.7 |
CR2477 | 3.0 | 950 | 24.5*7.7 | 8.50 |
CR2477 | 3.0 | 1100 | 24.5*7.7 | 9.90 |
CR3032 | 3.0 | 580 | 30.0*3.2 | 8.00 |
Advantages:
1) Environmental friendly,Light weight
2) High density of energy
3) Low self-discharge
4) Low internal resistance
5) No memory effect
6) Free of mercury
7) Safety assurance : No fire, No explosion, No leakage
Application:
memory cards, music cards, calculators, electronic watches and clocks, toys, electronic gifts, medical equipment, LED flash, card reader, small appliances, alarm system, , electronic dictionary , digital electronics, IT,etc.
