- Battery Type:LiMnO2
- Size:DxH 23x5.54mm
- materia:Free Hg 0% Hg Green
- Certificate:With CE ROHS SGS TUV Certificate
- Quality:Quality is guaranteed
- battery:cr2354
- Application:Toys
- Application:Power Tools
- Application:Home Appliances
- Application:Consumer Electronics
- Shape:Button
- Place of Origin:CN;GUA
- Battery Size:standard
- Brand Name:neutral or eunicell or oem
- Certification:CE/ROHS/SGS/MSDS/UN38.3
- Model Number:CR2354 CR 2354
- Weight:7 g

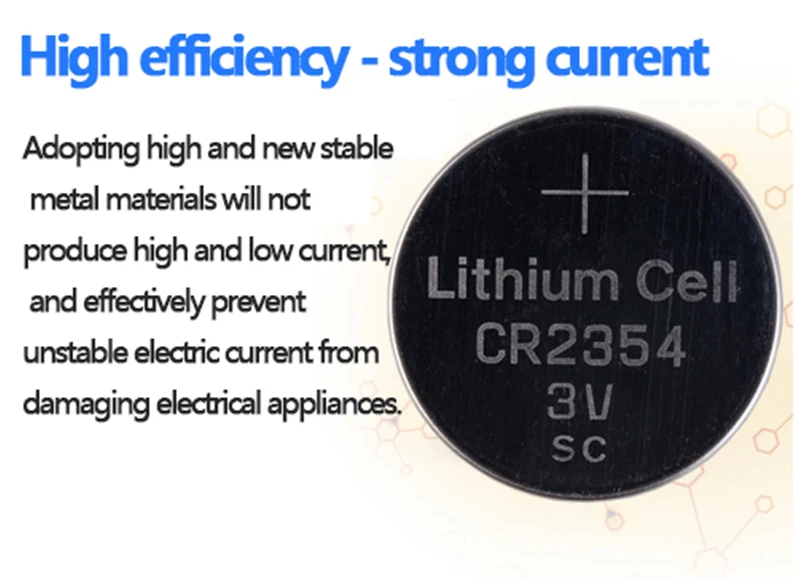

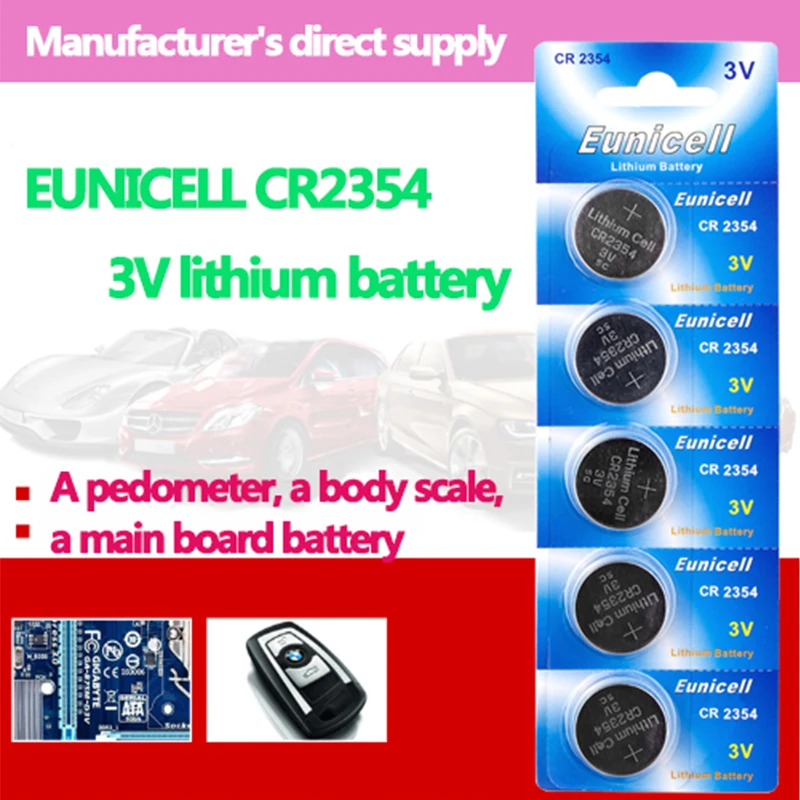

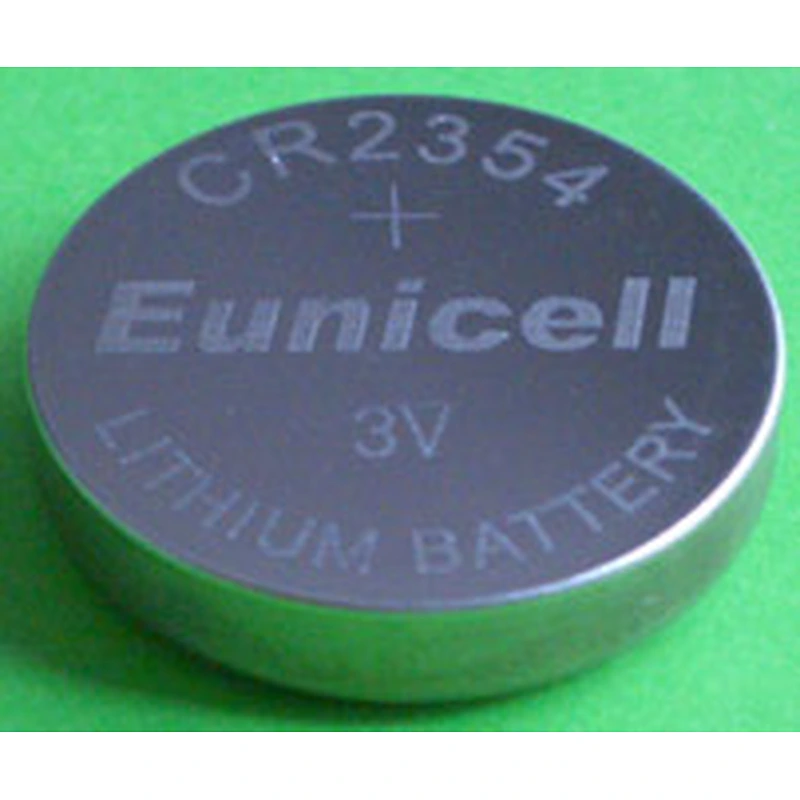

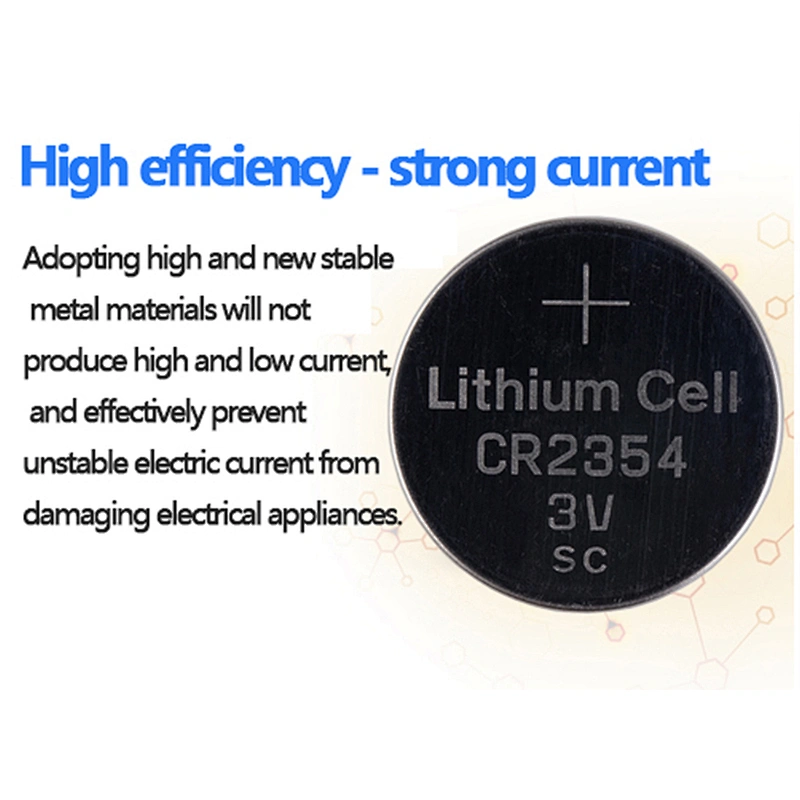

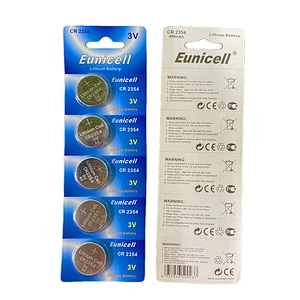

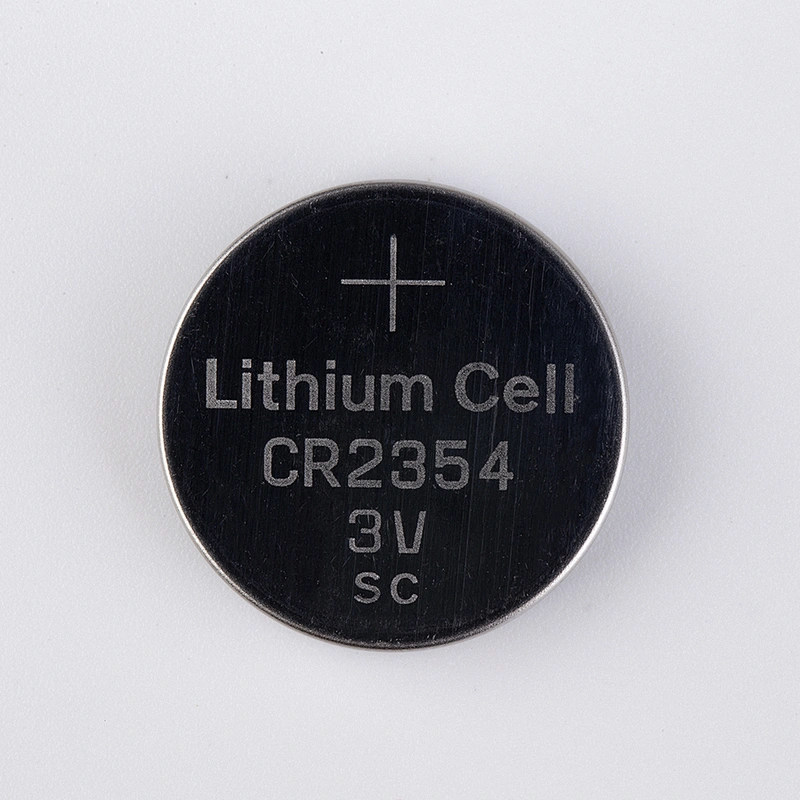

CR2354 battery 3v lithium button cell batteries CR2354
*Comparing with other battery company, our advantages as below:
1.12 months quality warranty
2. Untra environmental friendly button cell battery
3. Long working time
4. Made from high-quality materials
5. Excellent performance
6. Multi-applicable
7. Excellent storage performance and low self-discharge rate
8. Excellent safety performance
9. CE certificate

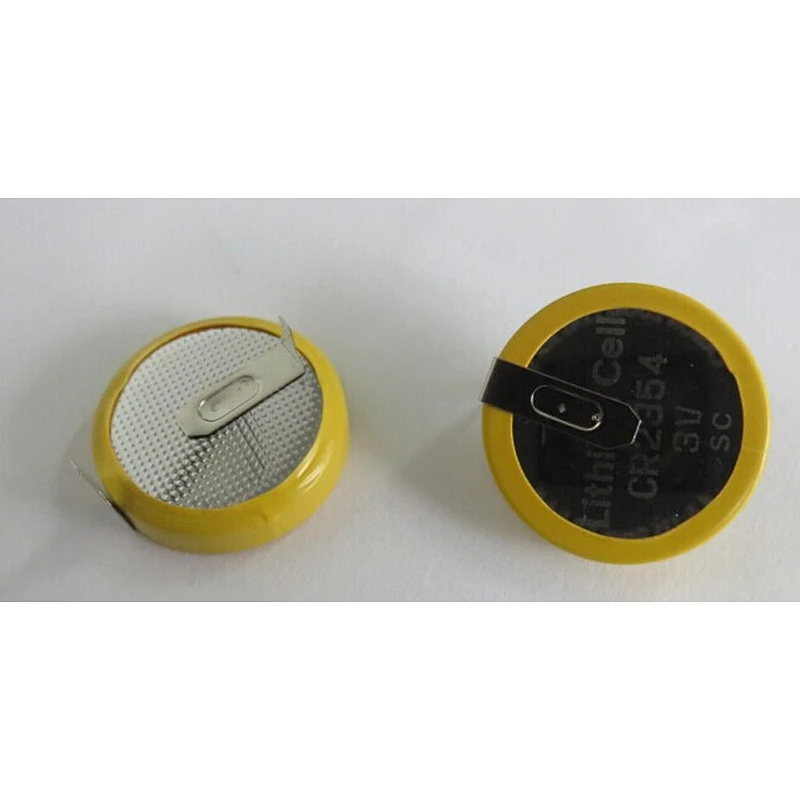

10. Also if the customers want the battery with PCB tabs, we can do as their drawing.
Widely used for: Wristwatches, LED flash, computers, music cards, medical instruments, PDA, MP3, shoe lamps, card-style radio, IC Card and other electronic product.
| Model | Nominal Voltage(V) | Norminal Capacity(mAh) | Standard Discharge Load(kΩ) | End Voltage(V) | Test Temperature(°C) | Max. Diameter(mm) | Max. Height(mm) | Reference Weight(g) |
| CR2016 | 3 | 75 | 30 | 2.0 | 23±3 | 20.0 | 1.6 | 1.8 |
| CR2025 | 3 | 150 | 15 | 2.0 | 23±3 | 20.0 | 2.5 | 2.4 |
| CR2032 | 3 | 210 | 15 | 2.0 | 23±3 | 20.0 | 3.2 | 3.0 |
| CR2320 | 3 | 175 | 15 | 2.0 | 23±3 | 23.0 | 2.0 | 3.0 |
| CR2325 | 3 | 210 | 15 | 2.0 | 23±3 | 23.0 | 2.5 | 3.3 |
| CR2330 | 3 | 250 | 15 | 2.0 | 23±3 | 23.0 | 3.0 | 4.0 |
| CR2354 | 3 | 490 | 15 | 2.0 | 23±3 | 23.0 | 5.540 | 6.0 |
| CR2450 | 3 | 540 | 15 | 2.0 | 23±3 | 24.5 | 5.0 | 6.5 |
| CR2477 | 3 | 1050 | 7.5 | 2.0 | 23±3 | 24.5 | 7.70 | 8.5 |
