- Battery Type:LiMnO2
- Size:24*3.0mm
- Load Standard:15
- Discharger Time:875h
- High-drain Pulse:18mA
- Continuous Low Drain:8uA
- Application:Toys
- Application:Power Tools
- Application:Home Appliances
- Application:Consumer Electronics
- Application:Remote control, car keys
- Shape:Button
- Place of Origin:CN;GUA
- Battery Size:24*3.0mm
- Brand Name:Eunicell
- Certification:CE/ROHS/REACH/SGS/MSDS
- Model Number:CR2430/DL2430/BR2430/2430
3v cr2430 lithium button watch battery
1.Specifications:
Size: CR2430
Material: Lithium Manganese
Nominal voltage: 3.0V
Nominal capacity: 275mAh
Standard current: 0.2mA
Maximum continuous current: 1mA
Maximum Pulse current: 18mA
Dimensions: 24x 3.0mm
Weight: 4.5g

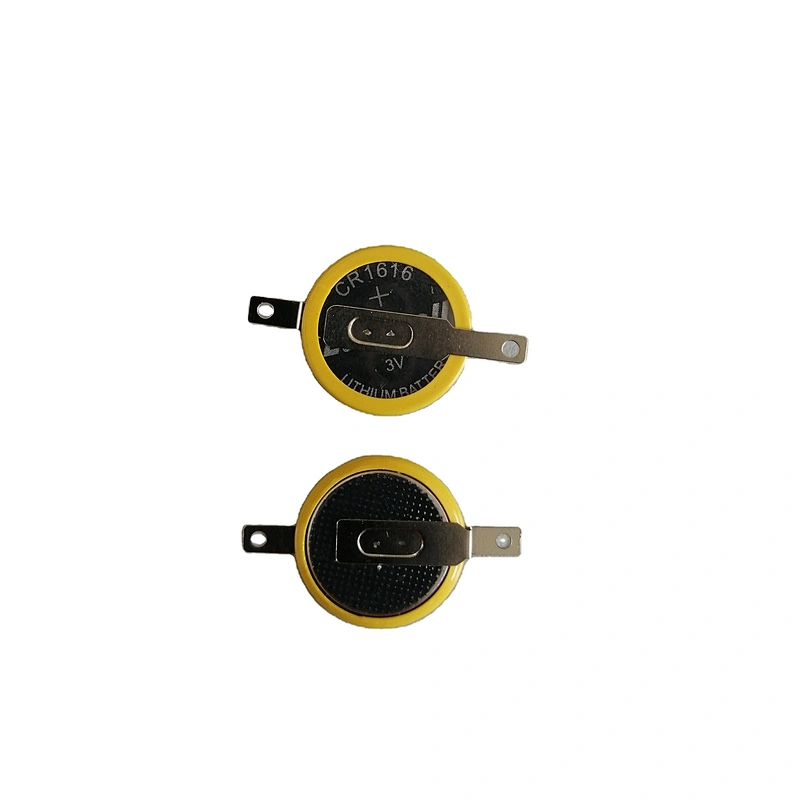

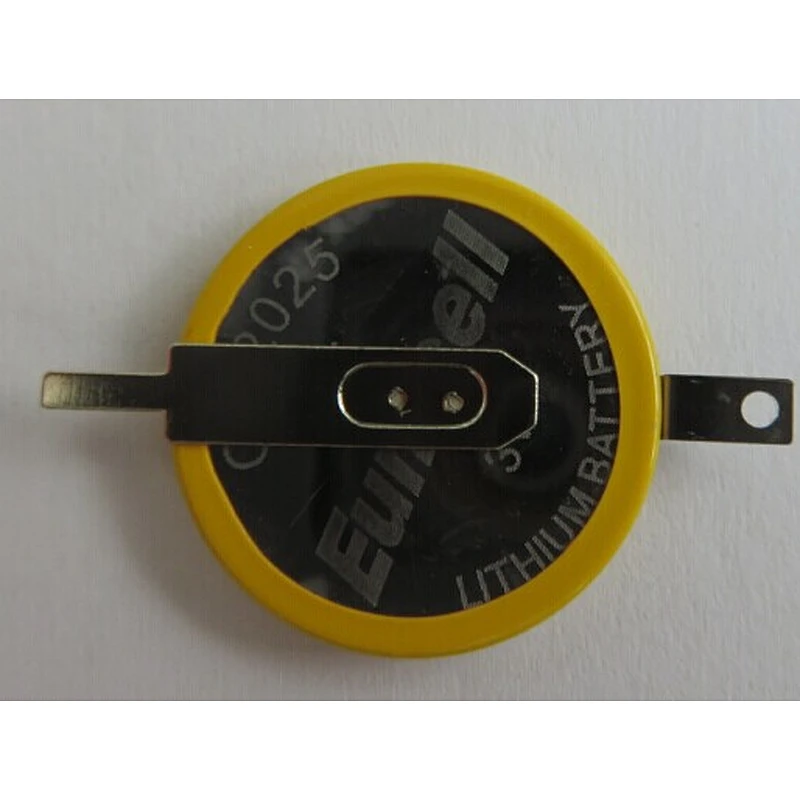

Batteries with pins are available according to customer's demand
2.Certification:
CE ROHS MSDS UN38.3 TUV REACH LVD
3.Waranty:12 months
4.Application:
Toys,Cameras,Smoking Alarm,Computer Peripherals,MP3/4,Memory Backup,Lighting and communication equipments, etc.
Model No. | Nominal voltage (V) | Nominal capacity (mAh) | Diameter (mm) | Height (mm) | Weight (g) |
CR1025 | 3 | 30 | 10 | 2.5 | 0.8 |
CR927 | 3 | 30 | 9 | 2.7 | 0.6 |
CR1216 | 3 | 20 | 12.5 | 1.6 | 0.7 |
CR1220 | 3 | 35 | 12.5 | 2 | 0.9 |
CR1225 | 3 | 40 | 12.5 | 2.5 | 1.1 |
CR1616 | 3 | 45 | 16 | 1.6 | 1.2 |
CR1620 | 3 | 70 | 16 | 2 | 1.3 |
CR1625 | 3 | 85 | 16 | 2.5 | 1.8 |
CR2016 | 3 | 70 | 20 | 1.6 | 1.7 |
CR2025 | 3 | 150 | 20 | 2.5 | 2.6 |
CR2032 | 3 | 210 | 20 | 3.2 | 3.3 |
CR2330 | 3 | 250 | 23 | 3 | 4 |
CR2354 | 3 | 500 | 23 | 5.4 | 5.7 |
CR2430 | 3 | 270 | 24.5 | 3 | 4.5 |
CR2450 | 3 | 550 | 24.5 | 5 | 6.5 |
CR2477 | 3 | 1000 | 24 | 7.7 | 8.2 |
Established in 2002, EAST (SHENZHEN) TECHNOLOGY Co., Ltd. is a professional manufacturer of various batteries. Our products cover a full range of dry batteries, button cells, 1.5v Mercury Free alkaline button cell, 3.0v lithium coins, carbon-zinc batteries, alkaline batteries, cylindrical batteries, AAA batteries, AA batteries and other primary batteries.
5.Pictures:
