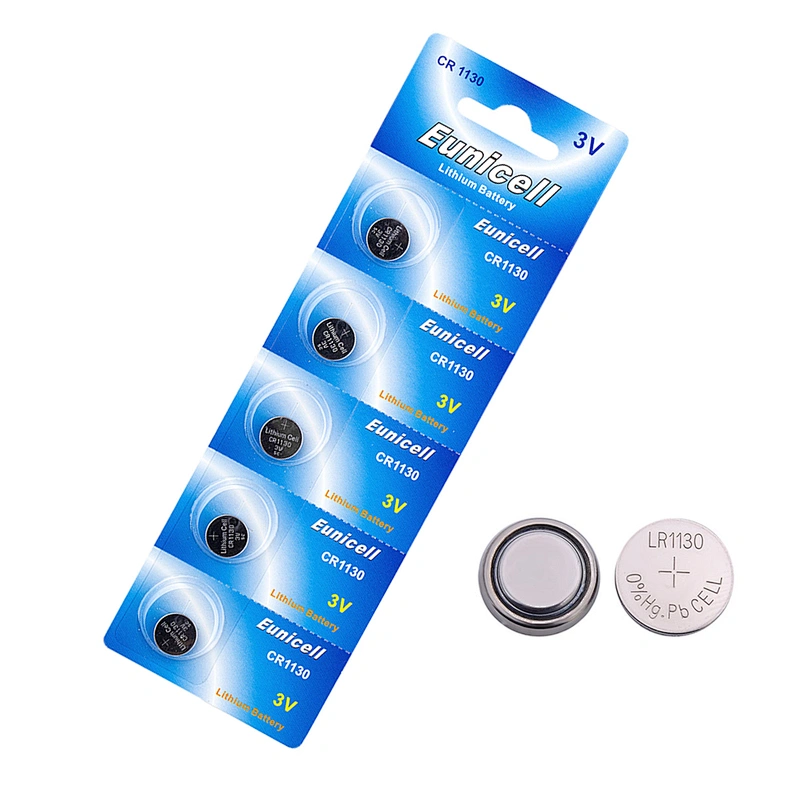

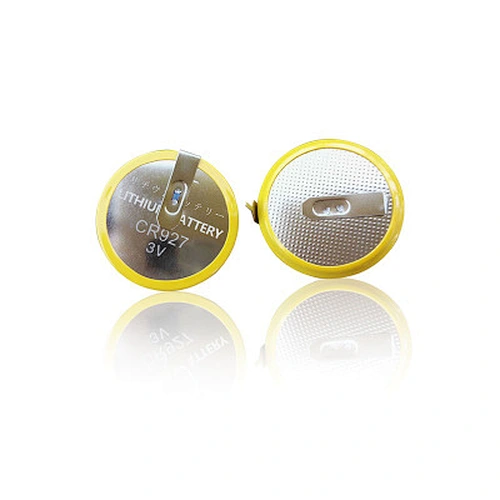

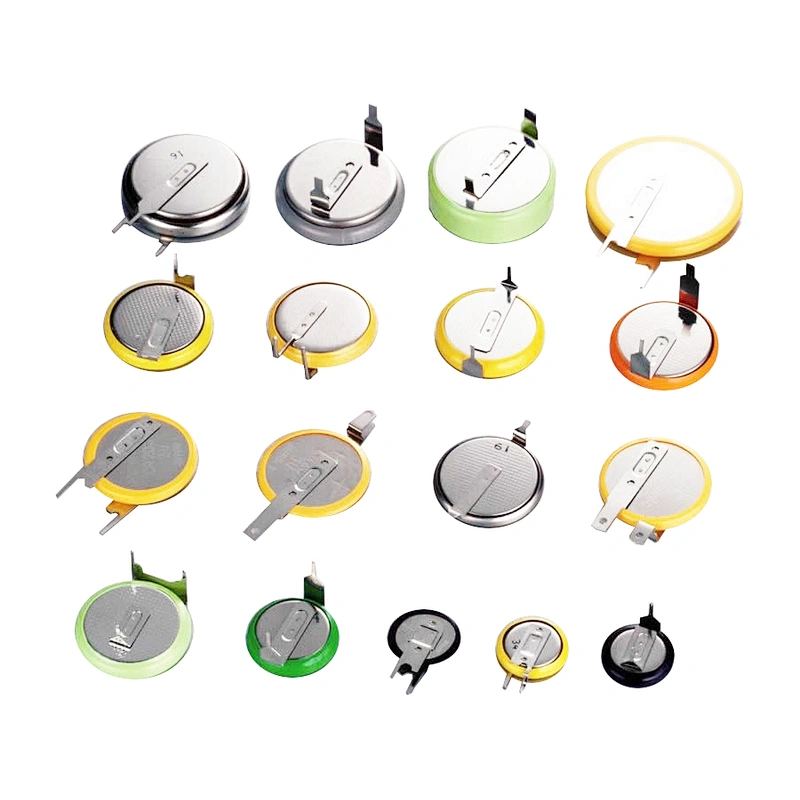

Lithium battery 3 Volt CR1130 small size button cell with tabs

Lithium battery 3 Volt CR1130 small size button cell with tabs

Model NO.: CR1130/DL1130/BR1130/1130
Price:: USD 0.06-0.06 / pieces
Delivery: FOB
Minimum order quantity: 3000 pieces
Supply Ability: 5000000.0 pieces / Day
Country of Origin: HONGKONG, SHENZHNE

Quantity:

Product Description

Battery Type:LiMnO2
Size:11.6*3.0mm
Load Standard:68
Discharger Time:1080h
High-drain Pulse:5mA
Continuous Low Drain:1uA
Weight:0.6g
Application:Toys
Application:Power Tools
Application:Home Appliances
Application:Consumer Electronics
Application:Watches, Remote control
Shape:Button
Place of Origin:CN;GUA
Battery Size:11*3.0mm
Brand Name:Eunicell, Neutral, OEM
Certification:CE/ROHS/REACH/SGS/MSDS
Model Number:CR1130/DL1130/BR1130/1130
Weight:0.6g

CR1130 battery cr1130 3V Lithium Manganese button battery CR1130 lr1130 ag10

Product Description

1) Size: CR1130

2) Nominal voltage: 3.0V
3) Nominal capacity: 48mAh
4) Standard current: 5mA
5) Weight: 0.6g
6) Mercury free
7) Metallic jacket
8) Models: CR927, CR1025, CR1130, CR1212, CR1216, CR1220, CR1616, CR1620, CR1625, CR1632, CR2016, CR2020, CR2025, CR2032, CR2320, CR2325, CR2330, CR2354, CR2430, CR2450, CR2477.

Packaging & Shipping

Bulk tray packing

Shipping terms: EXW, FOB, CNF, CIF, DDU, DDP

Our Services

Certificates: CE, ROHS, REACH, SGS, TUV, MSDS

Fast delivery

Quality guarantee

Company Information

Established in 2002, EAST (SHENZHEN) TECHNOLOGY Co., Ltd. is a professional manufacturer of various batteries. Our products cover a full range of dry batteries, button cells, 1.5v Mercury Free alkaline button cell, 3.0v lithium coins, carbon-zinc batteries, alkaline batteries, cylindrical batteries, AAA batteries, AA batteries and other primary batteries.

Model	Nominal Voltage (v)	Nominal Capacity (mAh)	End-Point Voltage (V)	Performance of New Batteries			Maximum Dimension xH(mm)	Guaranteed Shelf Life (Month)
				Standard Current (mA)	Operating Current
				Standard Current (mA)	Continuous Current(Max)(mA)	Pulse Current (Max)(mA)
CR927	3.0	30	2.0	0.1	0.2	5	9.5*2.7	24
CR1025		30		0.1	0.2	5	10.0*2.5
CR1130		40		0.1	0.2	5	11.6*3.0
CR1212		18		0.1	0.2	5	12.5*1.2
CR1216		25		0.1	0.2	5	12.5*1.6
CR1220		40		0.1	0.2	5	12.5*2.0
CR1225		48		0.1	0.2	5	12.5*2.5
CR1616		50		0.1	0.3	8	16.0*1.6
CR1620		70		0.1	0.3	8	16.0*2.0
CR1625		90		0.1	0.3	8	16.0*2.5
CR2016		75		0.1	0.3	10	20.0*1.6
CR2025		150		0.2	0.5	15	20.0*2.5
CR2032		210		0.2	0.75	15	20.0*3.2
CR2320		130		0.2	0.75	15	23.0*2.0
CR2330		260		0.2	0.75	15	23.0*3.0
CR2354		530		0.2	1.0	15	23.0*5.4
CR2430		270		0.3	1.0	15	24.5*3.0
CR2450		550		0.3	1.0	5	24.5*5.0
CR2477		950		0.3	1.0	15	24.5*7.7
CR3032		560		0.2	1.0	15	30.0*3.2
CR123A		1300		40	1500	3000	17.0*33.5	36
