- Type:Li-ion button cell
- Catalog:rechargeable

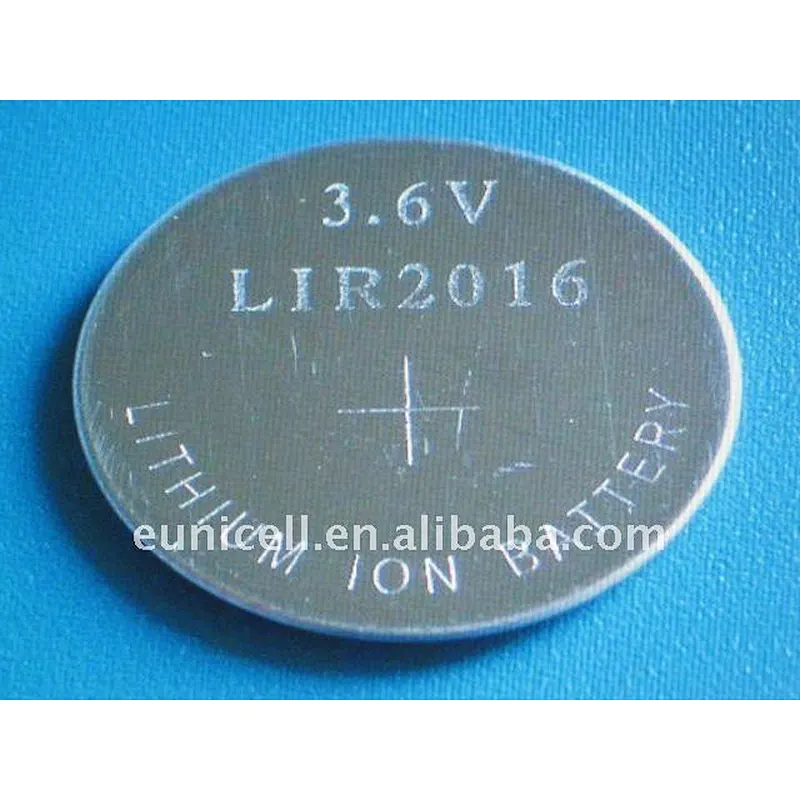

LIR2016 3.6V Li-ion rechargeable button cell battery
1. Model:LIR2016
2. Nominal Voltage:3.6v
3. Nominal Capacity:20mAh
4. Dimension: 20(D)*1.6(H)mm
5. Weight:2.0g
6. Execllent charge and discharge cycle characteristics
7. Execllent safety characteristics
8. No memory effect
9. Wild temperature:-20~+60 degree
10. Application:electronic calculator,toys,lighting,etc.
Bulk in tray
Warranty: 12 months
Certificates: CE, ROHS, SGS
Main feature:
1.3.6V nominal voltage
2.Stable and reliable discharge voltage.
3.Excellent storage characteristics.
4.Low self discharge rate of less than 2 percent.
5.Long shelf life.
6.Excellent fast pulse discharge characteristics.
7.Wide operating temperature range from -20°C to +60 °C.
Application:
wristwatches, computers, music cards, medical instruments, PDA, MP3,shoe lamps, card-style radio, IC Card and othe electronic product disappointment.
| Model | Diameter | Height | Nominal Voltage | Nominal Capacity | Weight |
| (mm) | (mm) | (V) | (mAh) | (g) | |
| LIR 1025 | 10 | 2.5 | 3.6V | 6 ±2 | 0.58 |
| LIR 1220 | 12.5 | 2 | 3.6V | 8 ±3 | 0.8 |
| LIR 1620 | 16 | 2.5 | 3.6V | 16 ±3 | 1.2 |
| LIR 2016 | 20 | 1.6 | 3.6V | 18 ±2 | 1.7 |
| LIR 2032 | 20 | 3.2 | 3.6V | 40 ±5 | 2.8 |
| LIR 2450 | 24.5 | 5 | 3.6V | 120 ±10 | 5 |
| LIR 2477 | 24.5 | 7.7 | 3.6V | 200 ±10 | 7.8 |
