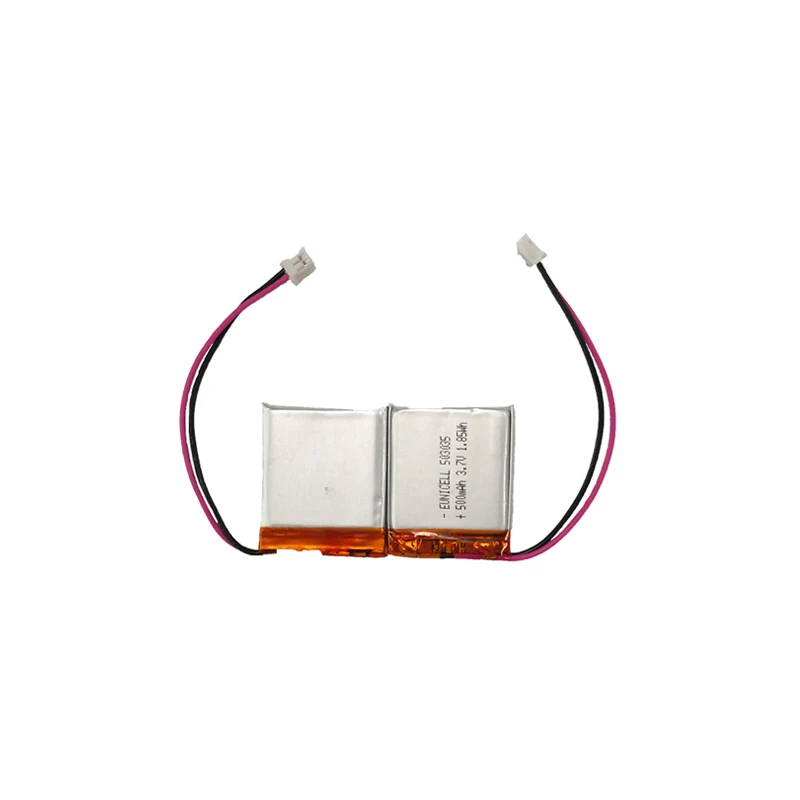

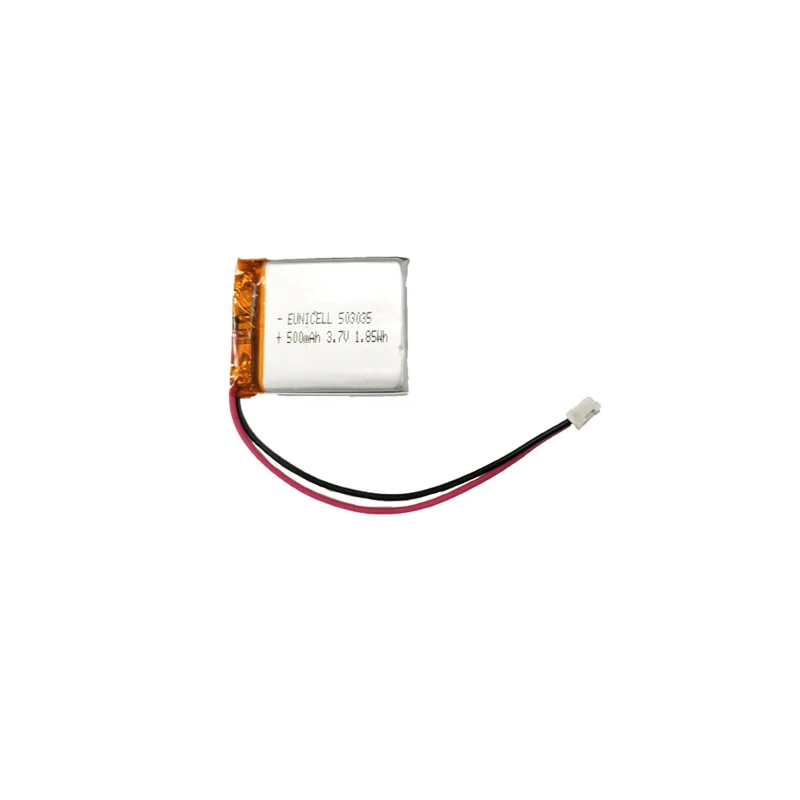

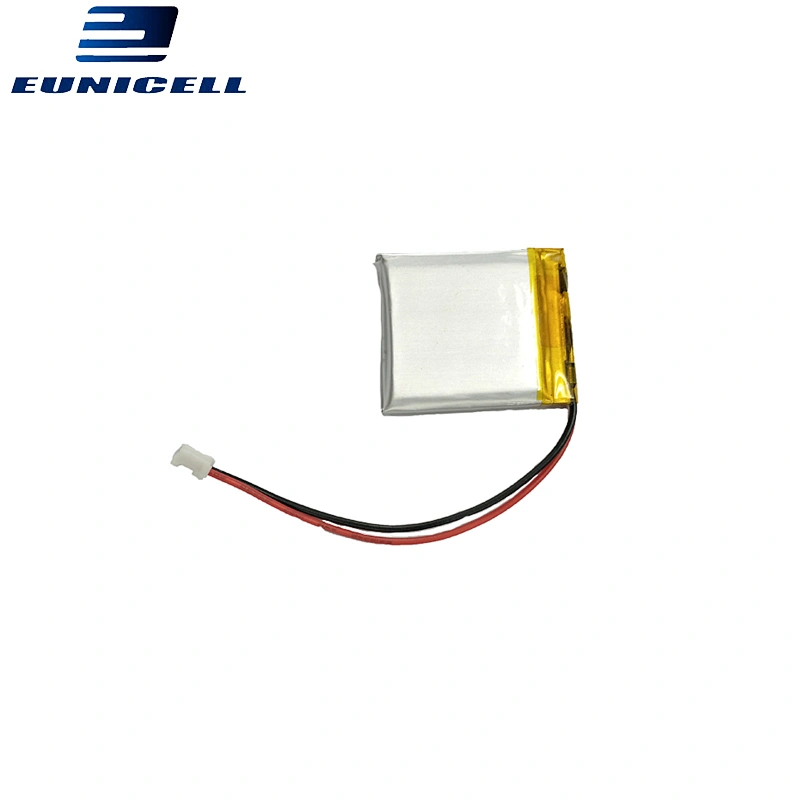

Eunicell Li-ion Polymer Rechargeable Battery 3.7V 503035 capacity 500mAh 1.85Wh for Mp3 MP4 MP5 GPS DIY

• Place of Origin:CN
• Type:Li-polymer
• Size:Prismatic
• Nominal Voltage:3.7v
• Brand Name:Eunicell
• Model Number:503035 500mah
• Nominal Capacity:500mah
• Application:DIY Bluetooth,MP3,MP4,MP5 GPS,PSP
• Warranty:12 Months
• Cycle life:500 Times
• Battery type:Lipo Battery
• Capacity:500mah
• Power:1.85wh
• Size:5.0*30.5*37.0mm

Eunicell  Li-ion Polymer Rechargeable Battery 3.7V 503035 capacity 500mAh 1.85Wh for  Mp3 MP4 MP5 GPS DIY

Features:

Model: 503035
size:H=5mm W=30mm L=35mm
weight:14.6g/pcs
voltage: 3.7 V
capacity: 500mAh.

Charging current: standard charging, fast charging: 1.0C: 0.5C
Standard charging method: 0.5C CC (constant current) charge to 4.25V, then CV (constant voltage 4.2V) charge till charge current is less than or equal to 0.05C
The maximum charge current: 1C
Maximum discharge current: 1C
Discharge cut-off voltage: 2.75V
The discharge temperature: -10 degrees C~+45 degrees C
Charging time: 5-6hrs (standard); 2hrs (fast)
Protection function: over charge, over discharge, over current, short circuit protection, over temperature protection

It can be recharged repeatedly
Built-in protection circuit PCM for prevent over charging or over discharging.

Package include:
1 x pcs 3.7v 500mAh lithium polymer rechargeable battery 503035.
