- Place of Origin:CN;GUA
- Battery Type:Zn/MnO2
- Certification:ce
- Certification:ROHS, SGS, REACH, MSDS
- Brand Name:Eunicell
- Model Number:AG4
- Size:6.8*2.6mm
- Battery type:alkaline button cell battery
- Model:AG4,LR626
- Diameter:6.8*2.6mm
- Weight:0.32g

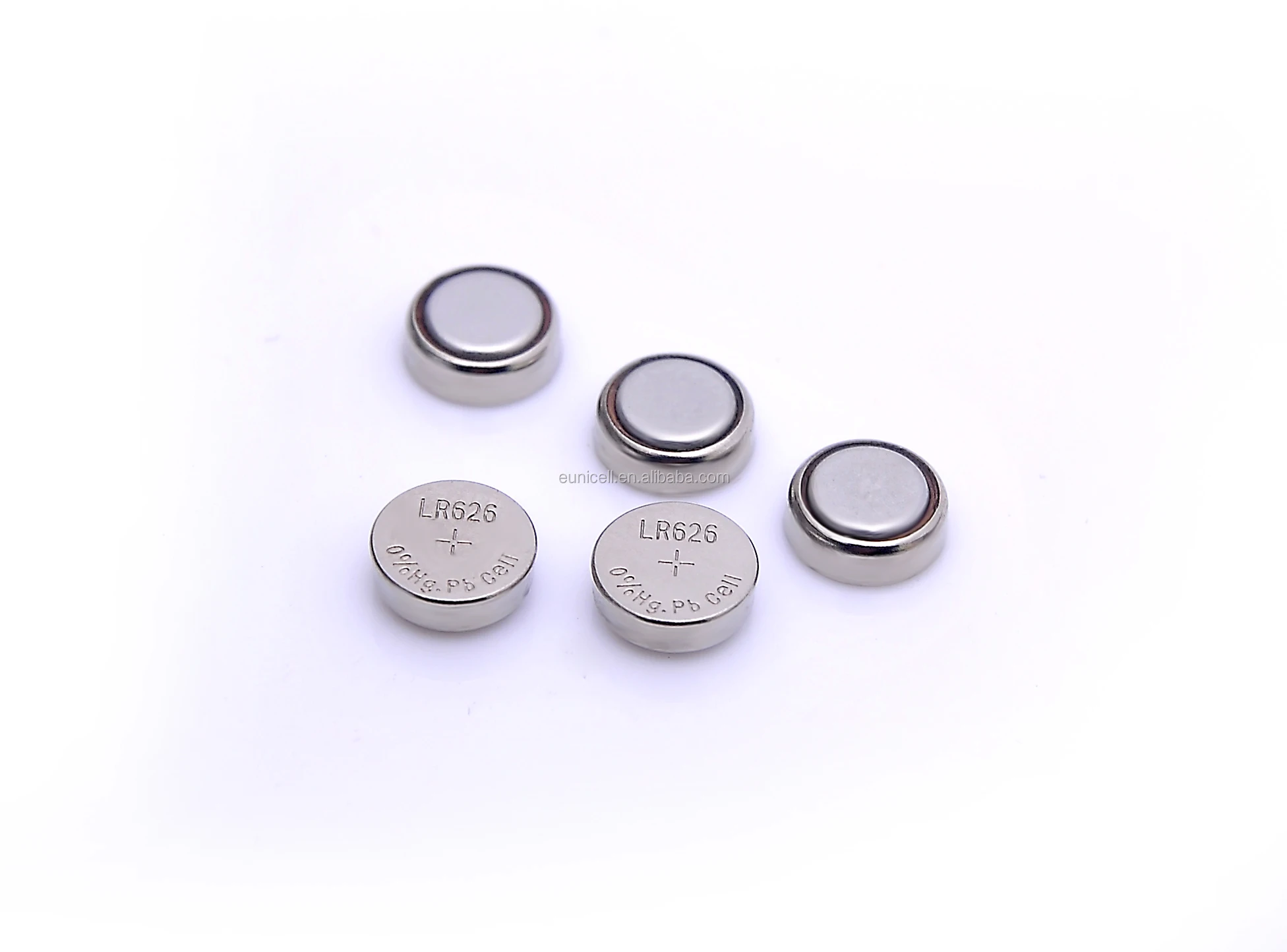

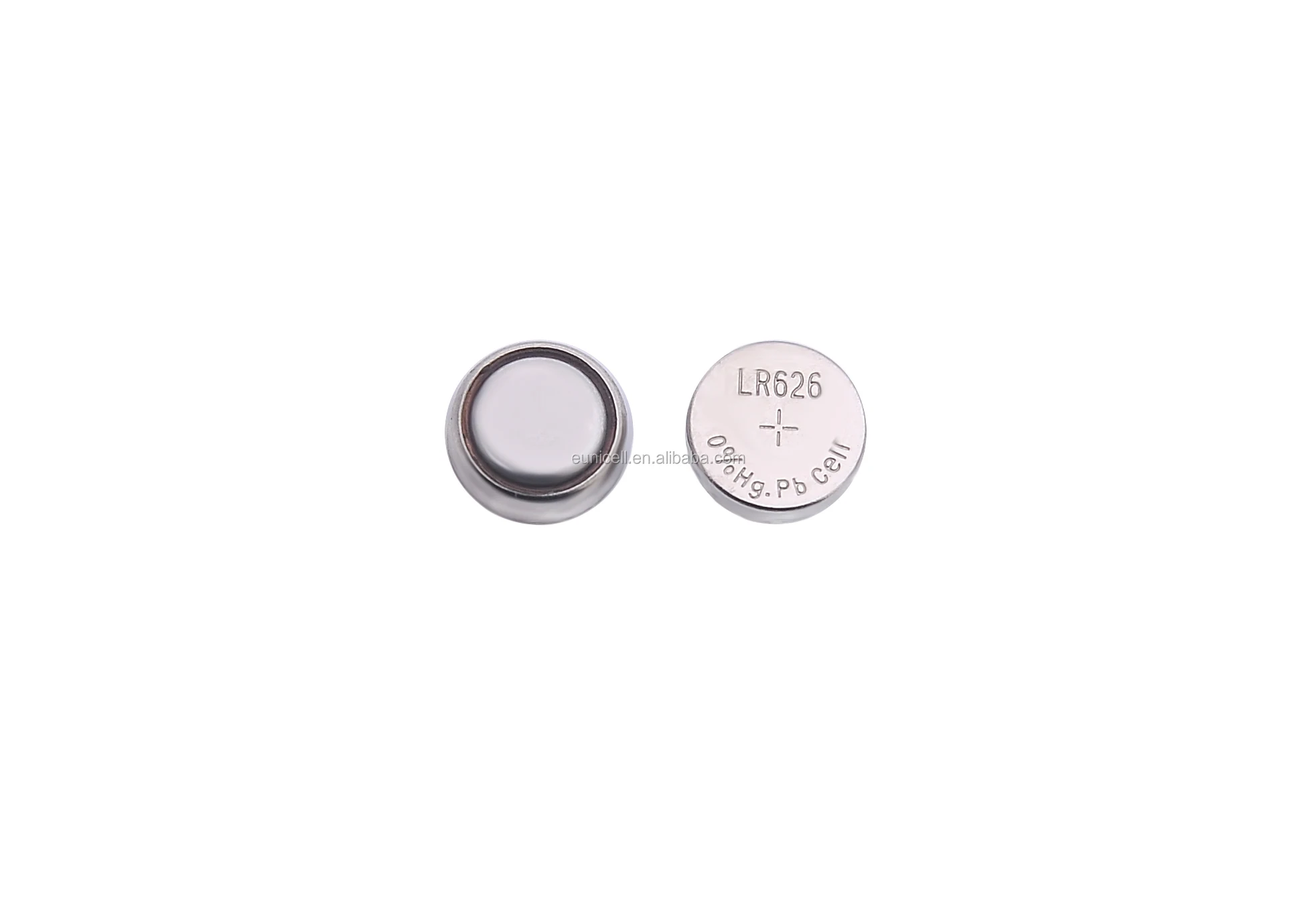

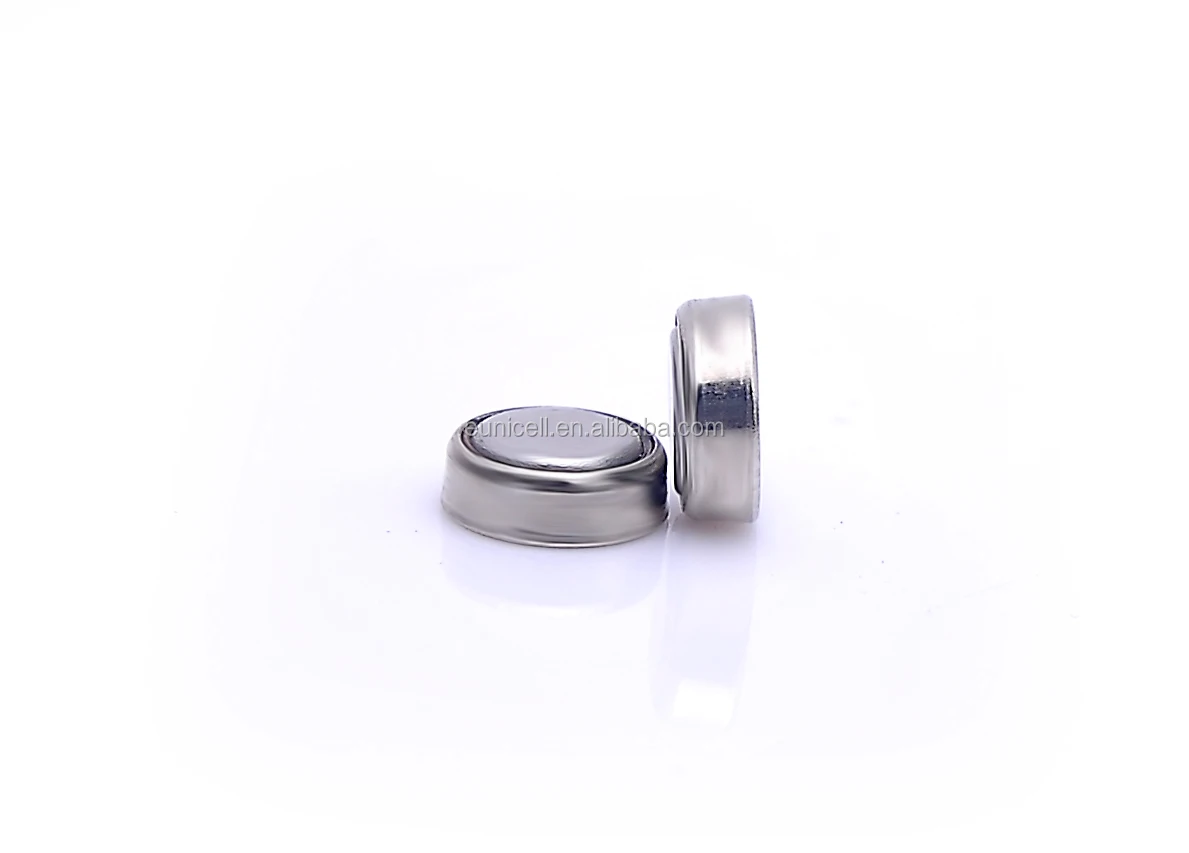

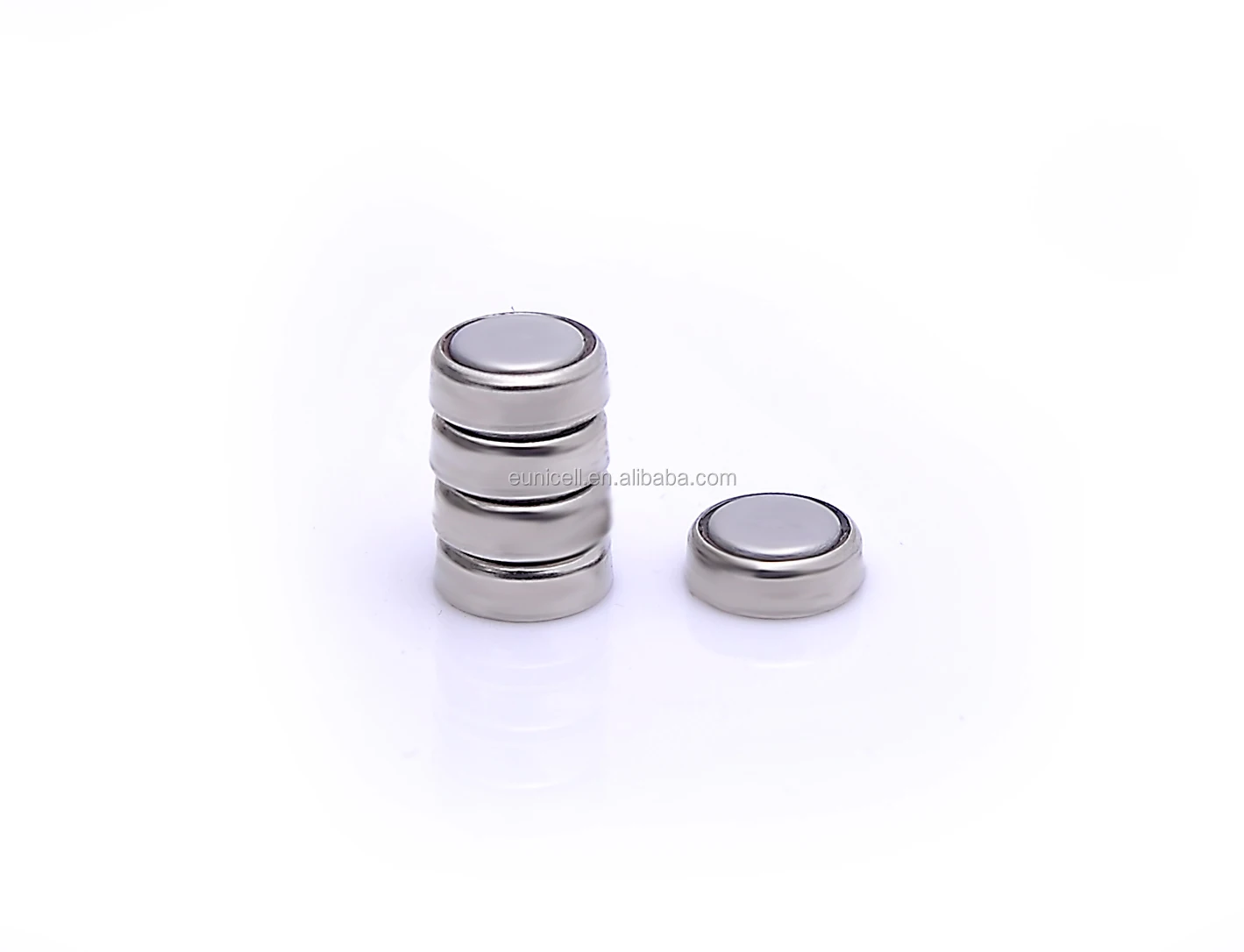

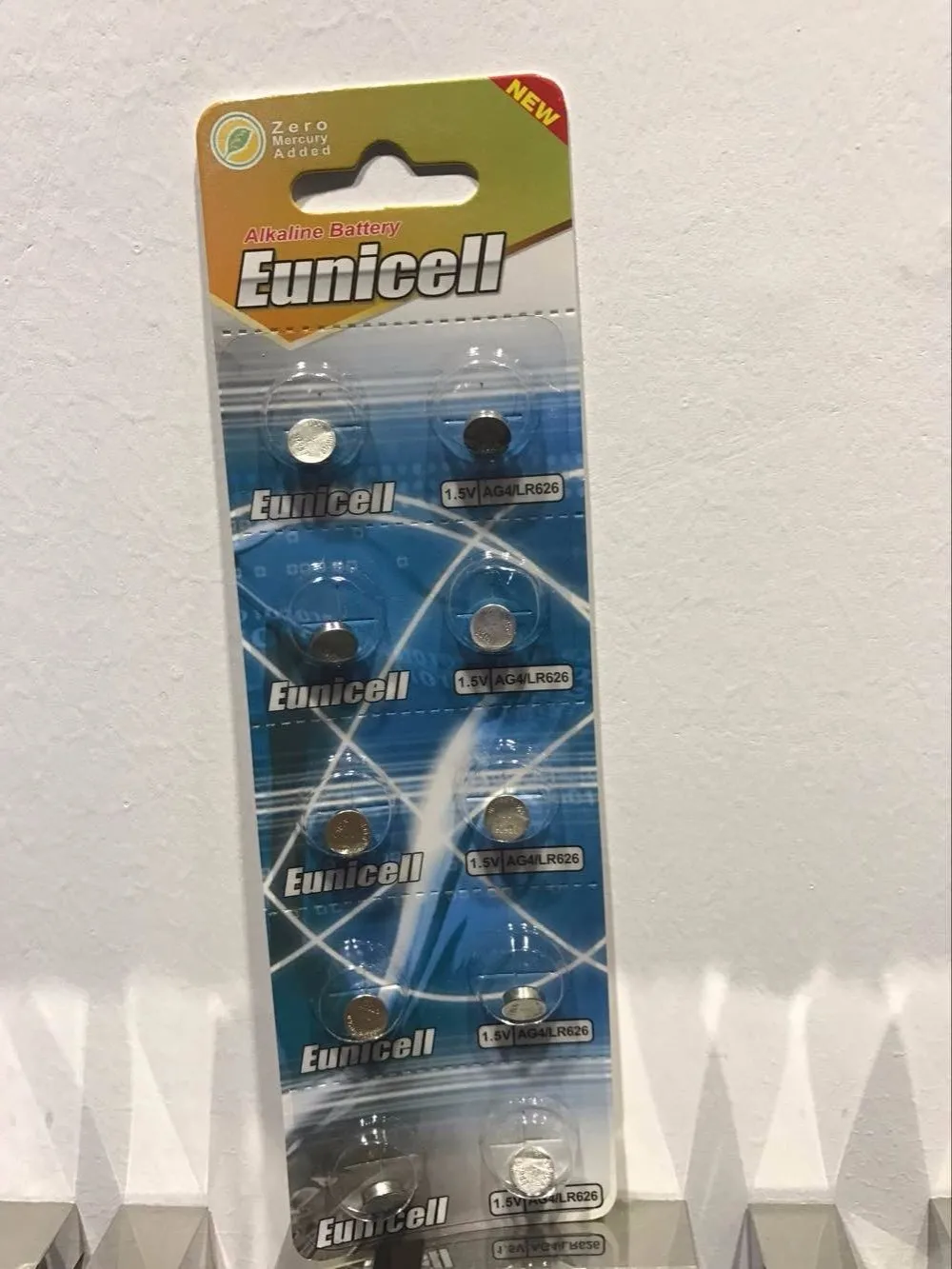

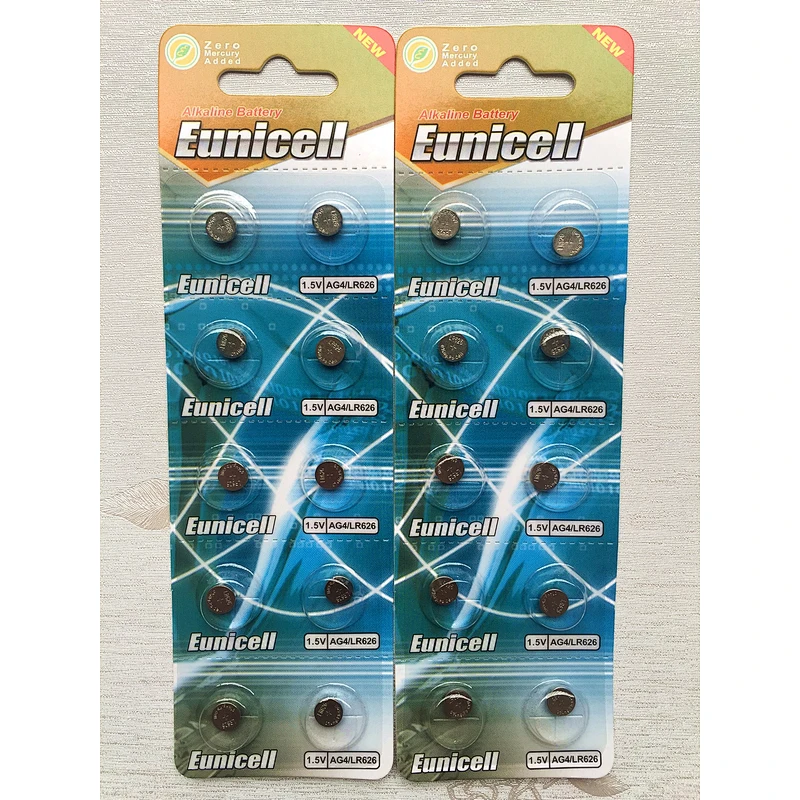

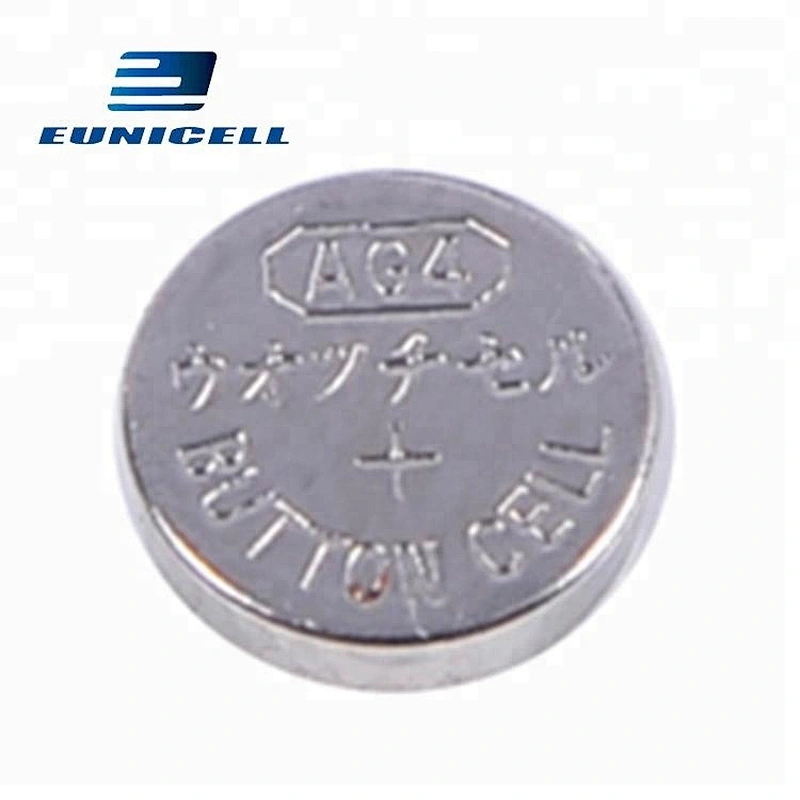

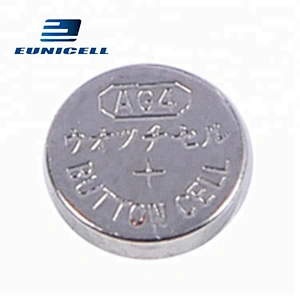

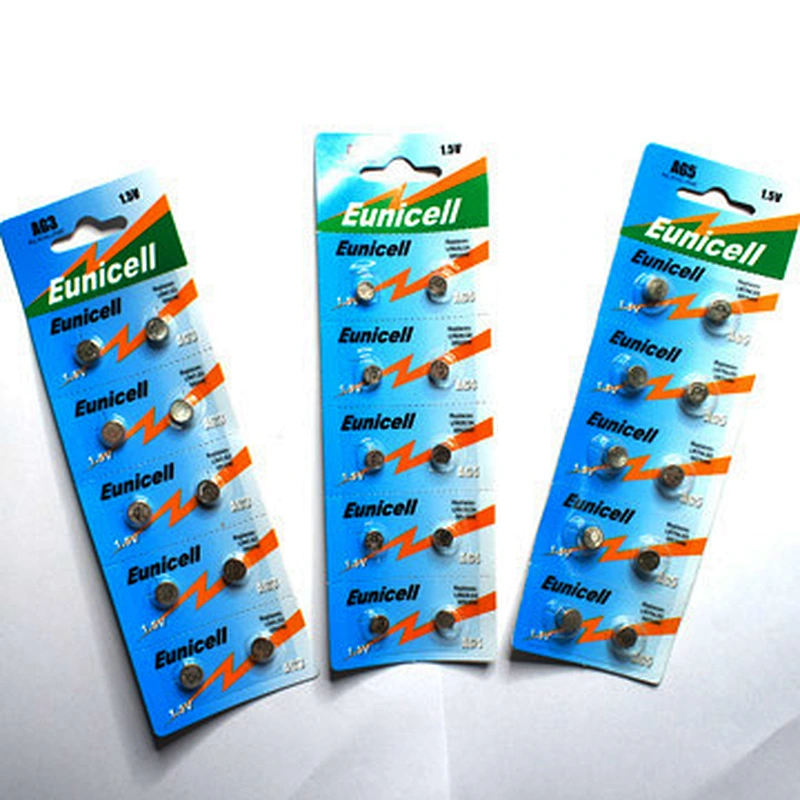

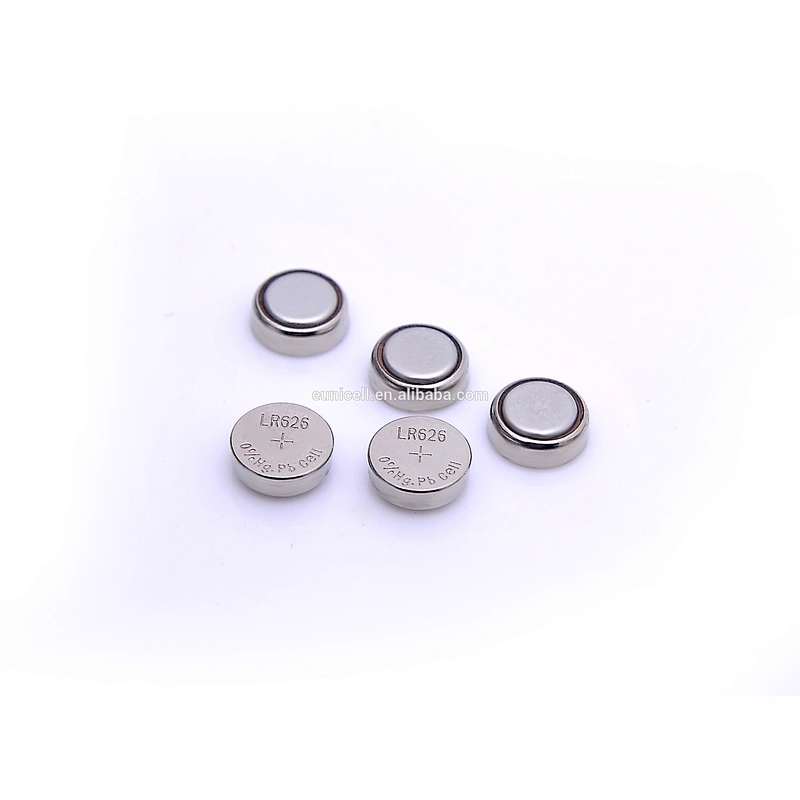

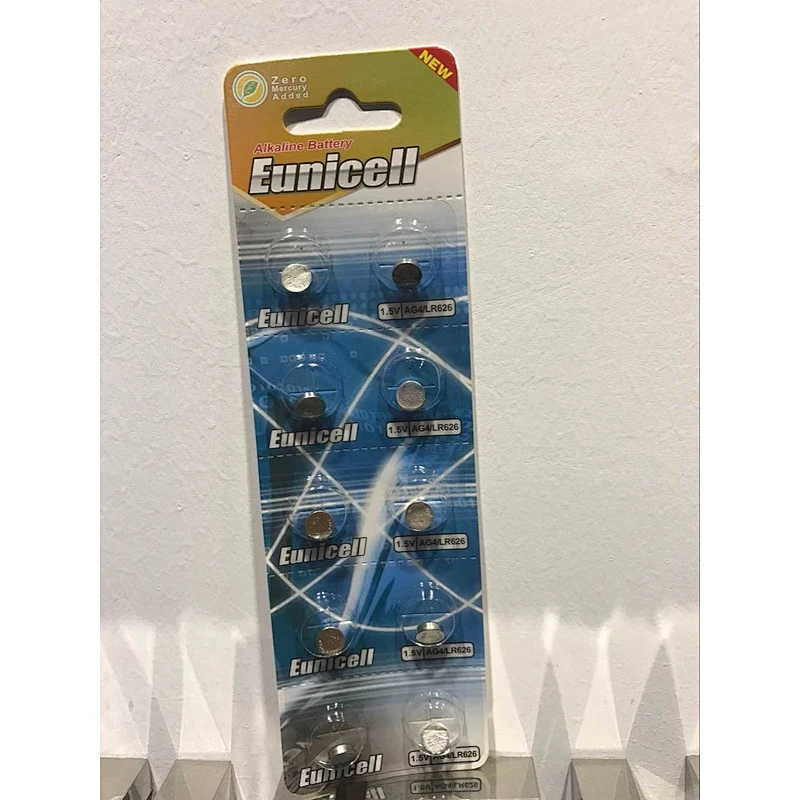

Watch Battery Ag4 L626 Sr66 Sr626Sw Alkaline Button Cell 1.5V Coin Battery
models are including: AG0. AG1. AG2. AG3. AG4. AG5. AG6. AG7.AG8.AG9.AG10.AG11.AG12.AG13/LR44
Model name
| Nominal voltage | Nominal capacity | Size | Approx weight |
AG4
| 1.5V | 13mAh | 6.8*2.6mm | 0.32g |
Related Products
| Model | Chemistry | Voltage (V) | Norminal Capacity (mAh) | Dimension (mm) | Weight(g) |
| LR44 | Zinc manganese | 1.5 | 120 | 11.6*5.4 | 1.92 |
| LR43 | Zinc manganese | 1.5 | 75 | 11.6*4.25 | 1.46 |
| LR721 | Zinc manganese | 1.5 | 17 | 7.85*2.2 | 0.4 |
| LR1130 | Zinc manganese | 1.5 | 60 | 11.6*3.1 | 1.15 |
| LR936 | Zinc manganese | 1.5 | 70 | 9.5*3.62 | 0.86 |
| LR1120 | Zinc manganese | 1.5 | 33 | 11.6*2.18 | 0.8 |
| LR927 | Zinc manganese | 1.5 | 38 | 9.5*2.7 | 0.69 |
| LR920 | Zinc manganese | 1.5 | 28 | 9.6*2.2 | 0.55 |
| LR754 | Zinc manganese | 1.5 | 45 | 7.85*5.4 | 0.88 |
| LR626 | Zinc manganese | 1.5 | 17 | 6.85*2.63 | 0.34 |
| LR41 | Zinc manganese | 1.5 | 37 | 7.85*3.65 | 0.6 |
| LR726 | Zinc manganese | 1.5 | 21 | 7.85*2.63 | 0.49 |
| LR621 | Zinc manganese | 1.5 | 14 | 6.85*2.2 | 0.3 |
| LR521 | Zinc manganese | 1.5 | 9 | 5.85*2.2 | 0.2 |
| LR527 | Zinc manganese | 1.5 | 11 | 5.85*2.7 |
Model | No. | Dia (mm) | H (mm) | Voltage (V) | Capacity(mAh) | (Ω) | Dishcarg time(hrs) | Off Voltage(V) | Weight (g) |
| LR621,364 | AG1 | 6.75 | 2.00 | 1.5 | 13 | 68K | 630 | 0.9 | 0.25 |
| LR726,396 | AG2 | 7.85 | 2.50 | 1.5 | 26 | 22K | 490 | 0.9 | 0.44 |
| LR41,392 | AG3 | 7.85 | 3.50 | 1.5 | 35 | 22K | 670 | 0.9 | 0.57 |
| LR626,377 | AG4 | 6.75 | 2.50 | 1.5 | 18 | 47K | 690 | 0.9 | 0.31 |
| LR754,393 | AG5 | 7.85 | 5.30 | 1.5 | 58 | 22K | 920 | 0.9 | 0.9 |
| LR920,371 | AG6 | 9.45 | 2.00 | 1.5 | 32 | 15K | 320 | 0.9 | 0.55 |
| LR926,395 | AG7 | 9.45 | 2.50 | 1.5 | 46 | 15K | 400 | 0.9 | 0.64 |
| LR1120,391 | AG8 | 11.55 | 2.00 | 1.5 | 45 | 15K | 570 | 0.9 | 0.79 |
| LR936 | AG9 | 9.45 | 3.50 | 1.5 | 56 | 15K | 550 | 0.9 | 0.86 |
| LR1130,389 | AG10 | 11.55 | 3.00 | 1.5 | 68 | 15K | 850 | 0.9 | 1.11 |
| LR721,362 | AG11 | 7.85 | 2.00 | 1.5 | 20 | 7.5K | 415 | 0.9 | 0.38 |
| LR43,386 | AG12 | 11.55 | 4.10 | 1.5 | 100 | 7.5K | 610 | 0.9 | 1.47 |
| LR44,357 | AG13 | 11.55 | 5.3 | 1.5 | 148 | 7.5K | 880 | 0.9 | 1.92 |
Applications
- watches, clocks, hearing aid, calculators, electronics, games, cameras, audio equipment,
- data acquisition systems, electronics communication devices, indsutrial monitors / controls, switch board, transceivers and radios
- medical equipment
- remote keyless entry (key FOB), security devices
- memory back up
