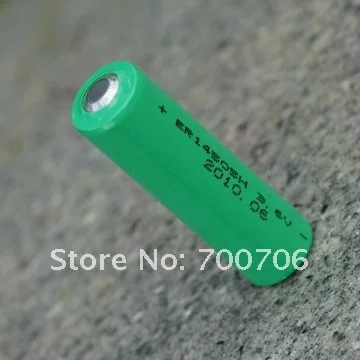

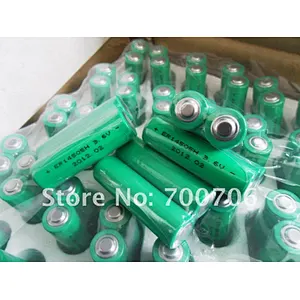

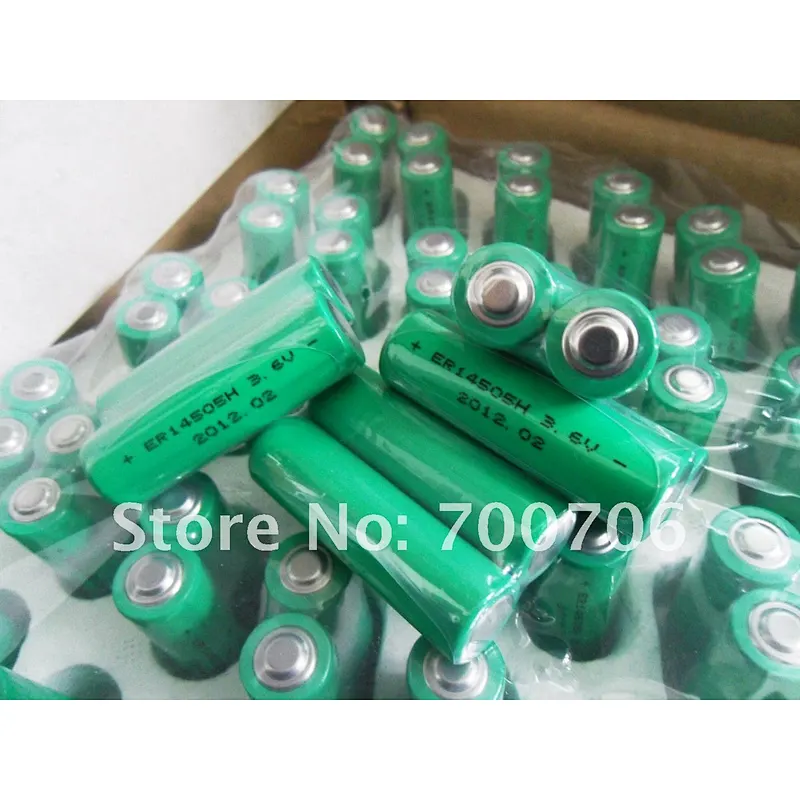

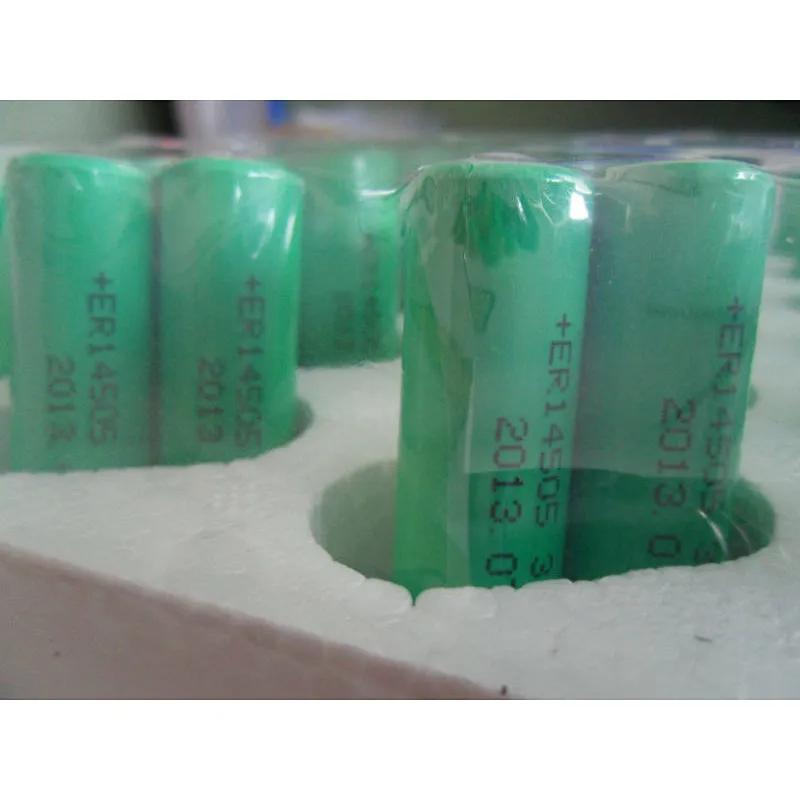

AA size ER14505 battery 3.6V 2400mAh Lithium Thionyl Chloride Li-SOCL2 battery

• Place of Origin:CN;GUA
• Brand Name:Eunicell or netural
• Nominal Capacity:2700mah
• Model Number:ER14505H AA
• Nominal Voltage:3.6v
• Size:14*50.5mm
• Battery Type:Li-SOCL2
• Model:AA ER14505 3.6V lithium battery
• Nominal Voltage:3.6v
• battery type:Li-SOCL2

AA size ER14505 3.6V lithium thionyl chloride battery

Electrical characteristics

• Nominal capacity 2.4Ah ( 2400 mAh)@ 1.0mA +20'C 2.0V cut-off.
• Capacity may vary based on test condition of current drain, temperature, cutt off voltage
• Open circuit voltage (at +20C +68F) 3.66V
• Nominal voltage (at 1mA +20C +68F) 3.6V
• Pulse capability: Typically up to 200 mA
• Max. Continuous current: 100mA Max
• Pulse current: 200mA
• Storage (recommended) +30C +86 F max
• Operating temperature range -55C / +85C
•  lithium-thionyl chloride (Li-SOCl2) technology
• Diameter(max):  14.4mm (0.57")
• Height (max):     49.65mm (1.95")
• Typical weight:   19g (0.622oz)
• Note: Please make sure you order the correct size of battery. ( The cell is little different from standard AA rechargeable cells
• Standard AA rechargeable cell's dimension (Dia x H): 14.21(0.56")x50.4mm(1.98"),

Main applications:

• Radio communication and other military applications
• Alarms and security systems
• Beacons and emergency location transmitters
• GPS
• Metering systems
• Sonobuoys
• LED lighting applications
• Others.
