Lithium Battery

Electrical characteristics

• Nominal capacity 2.7Ah ( 2700 mAh)@ 1.0mA +20'C 2.0V cut-off.
  • Capacity may vary based on test condition of current drain, temperature, cutt off voltage
• Open circuit voltage (at +20C +68F) 3.66V
• Nominal voltage (at 1mA +20C +68F) 3.6V
• Pulse capability: Typically up to 200 mA
• Max. Continuous current: 100mA Max
• Pulse current: 200mA
• Storage (recommended) +30C +86 F max
• Operating temperature range -55C / +85C

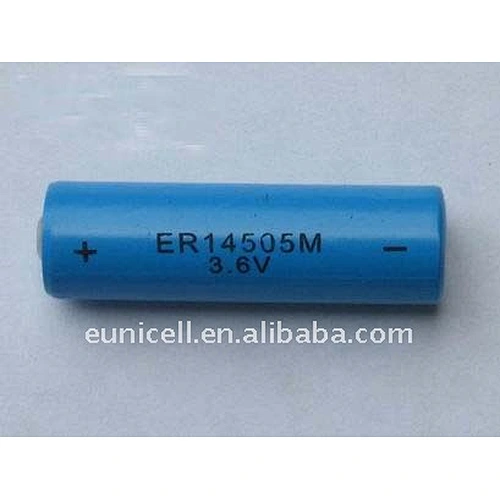

•  lithium-thionyl chloride (Li-SOCl2) technology
• Diameter(max):  14.4mm (0.57")
• Height (max):     49.65mm (1.95")
• Typical weight:   19g (0.622oz)
• Note: Please make sure you order the correct size of battery. ( The cell is little different from standard AA rechargeable cells
  • Standard AA rechargeable cell's dimension (Dia x H): 14.21(0.56")x50.4mm(1.98"),

Main applications:

• Radio communication and other military applications
• Alarms and security systems
• Beacons and emergency location transmitters
• GPS
• Metering systems
• Sonobuoys
• LED lighting applications
• Others.

Warning:

• This battery is not rechargeable. Do not try to recharge.
• The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
• Please discharge the battery few minutes with 100mA,if the battery voltage is lower than your need or consult ABLE.
• Don't use different models of battery in series.
• Soldering the tab should be finished in few seconds.
• Do not use if the battery casing was mangled
• This is consumable battery, no return, no refund after sale.
