- Application:Toys
- Application:Power Tools
- Application:Home Appliances
- Application:Consumer Electronics
- Shape:Cylindrical
- Place of Origin:CN;GUA
- Battery Size:D size
- Brand Name:Eunicell
- Certification:CE, ROHS, SGS, MSDS
- Model Number:ER34615
- Battery Type:LiSO2
- Size:34*61.5mm
- Nominal Voltage:3.6v
- Type:LiSOCL2
- Battery pack:with lead wire and connecor
- Certification:CE SGS ROSH MSDS
- Application:Electronic tools

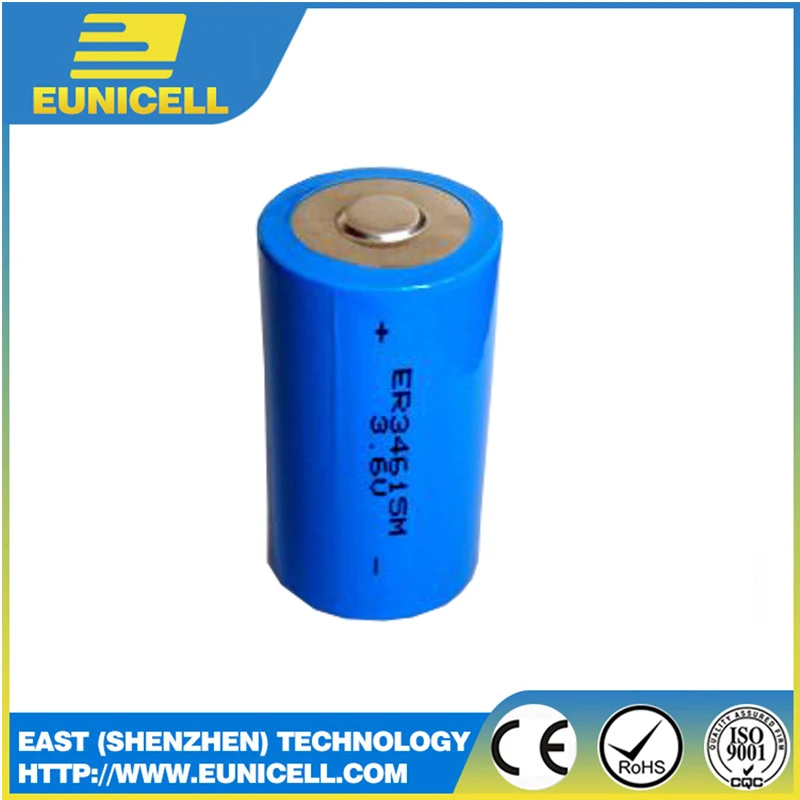

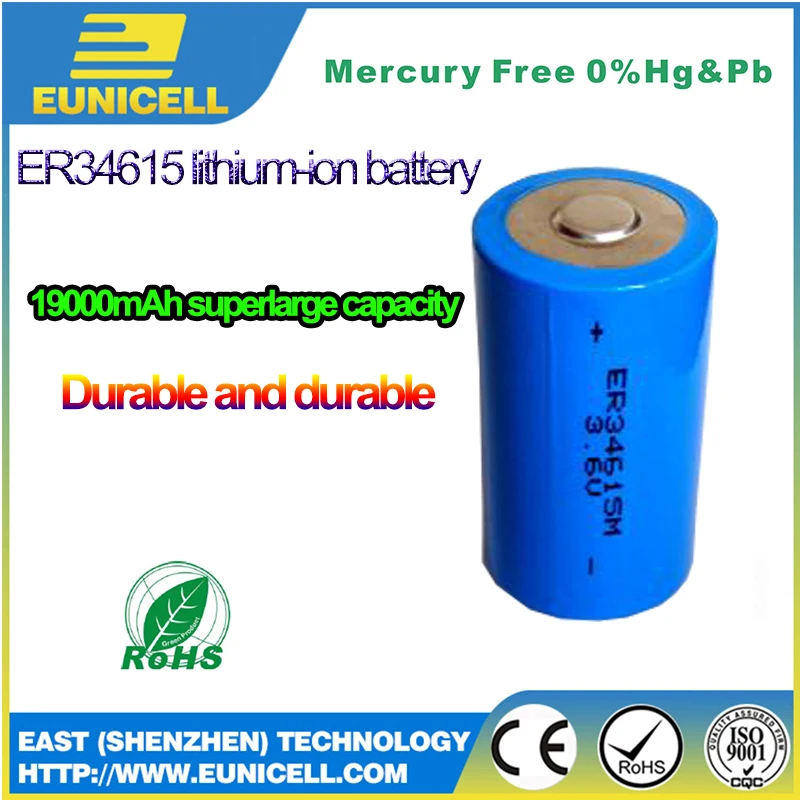

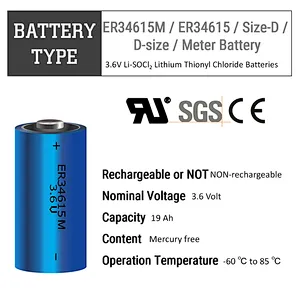

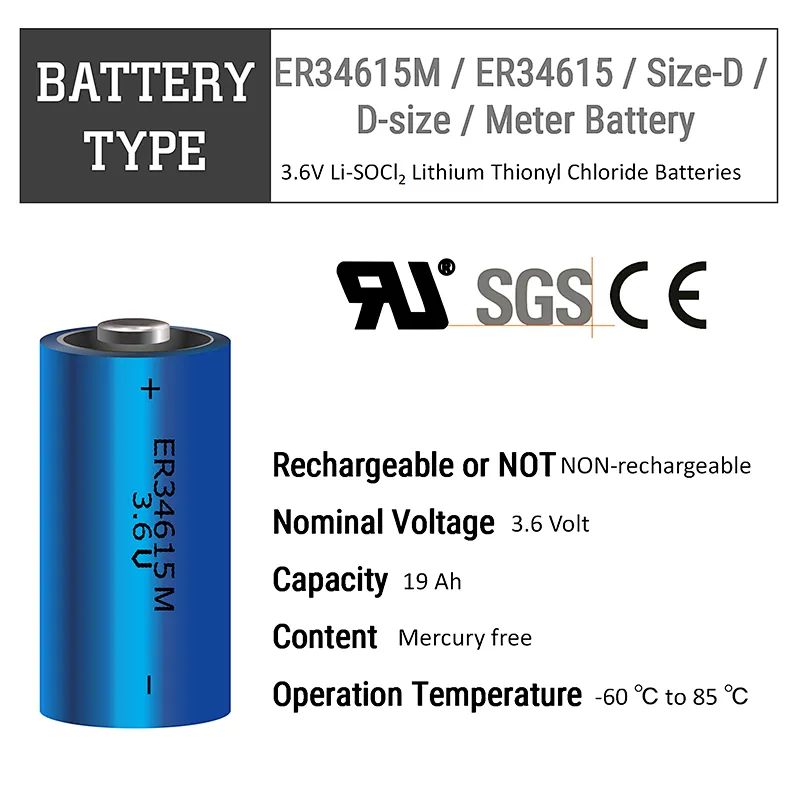

ER34615 D size LiSOCL2 3.6V Lithium Battery Have CE ROHS MSDS

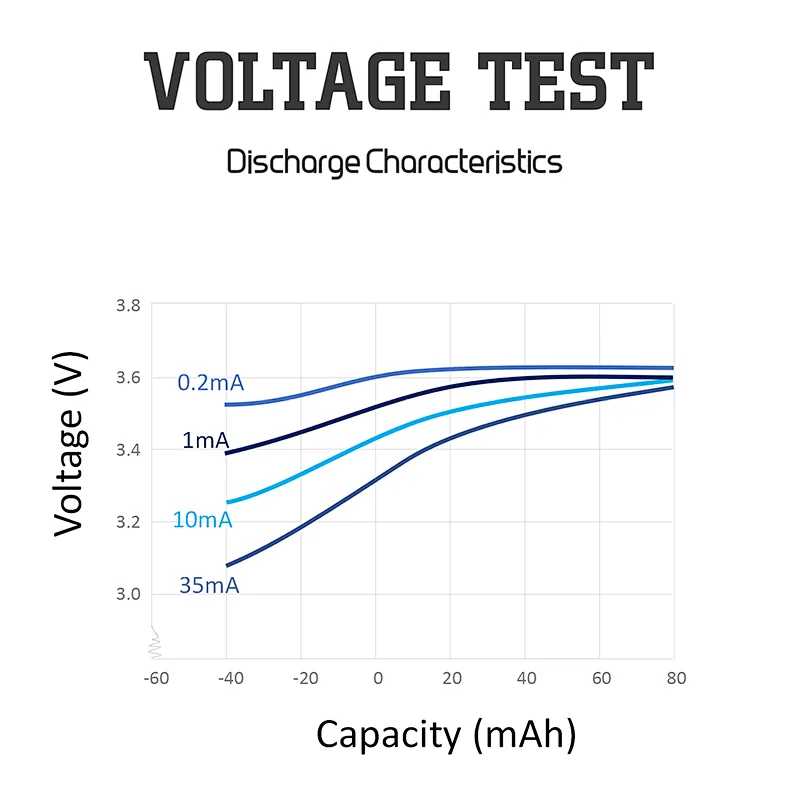

Electrical characteristics
- Nominal capacity 2.4Ah ( 2400 mAh)@ 1.0mA +20'C 2.0V cut-off.
- Capacity may vary based on test condition of current drain, temperature, cutt off voltage
- Open circuit voltage (at +20C +68F) 3.66V
- Nominal voltage (at 1mA +20C +68F) 3.6V
- Pulse capability: Typically up to 200 mA
- Max. Continuous current: 100mA Max
- Pulse current: 200mA
- Storage (recommended) +30C +86 F max
- Operating temperature range -55C / +85C
- lithium-thionyl chloride (Li-SOCl2) technology
- Diameter(max): 14.4mm (0.57")
- Height (max): 49.65mm (1.95")
- Typical weight: 19g (0.622oz)
- Note: Please make sure you order the correct size of battery. ( The cell is little different from standard AA rechargeable cells
- Standard AA rechargeable cell's dimension (Dia x H): 14.21(0.56")x50.4mm(1.98"),
Main applications:
- Radio communication and other military applications
- Alarms and security systems
- Beacons and emergency location transmitters
- GPS
- Metering systems
- Sonobuoys
- LED lighting applications
| Model | Rated voltage | Nominal Capacity | Working Current(mA) | Dimensions(mm) | Weight(g) | |||
| (V) | (mAh) | Standard current | Continues Current | Pluse Current | Diameter*Height | |||
| High Capacity | ||||||||
| ER10280 | 3.6V | 450mAh | 1mA | 10mA | 30mA | 10.5mm*28mm | 4g | |
| ER13150 | 3.6V | 450mAh | 1mA | 10mA | 30mA | 13.5mm*15.5mm | 6g | |
| ER10450 | AAA | 3.6V | 750mAh | 1mA | 25mA | 60mA | 10.4mm*45.3mm | 9g |
| ER14250 | 1/2AA | 3.6V | 1200mAh | 1mA | 20mA | 45mA | 14.5mm*25.2mm | 10g |
| ER14335 | 2/3AA | 3.6V | 1600mAh | 1mA | 75mA | 150mA | 14.5mm*33.5mm | 12g |
| ER14505 | AA | 3.6V | 2400mAh | 2mA | 100mA | 200mA | 14.5mm*50.5mm | 19g |
| ER17335 | 2/3A | 3.6V | 2000mAh | 1mA | 100mA | 200mA | 17.0mm*33.5mm | 18g |
| ER17505 | A | 3.6V | 3500mAh | 2mA | 120mA | 200mA | 17.0mm*50.5mm | 24g |
| ER18505 | A | 3.6V | 3800mAh | 3mA | 120mA | 200mA | 18.5mm*50.5mm | 28g |
| ER26500 | C | 3.6V | 8500mAh | 4mA | 130mA | 300mA | 26.2mm*50mm | 52g |

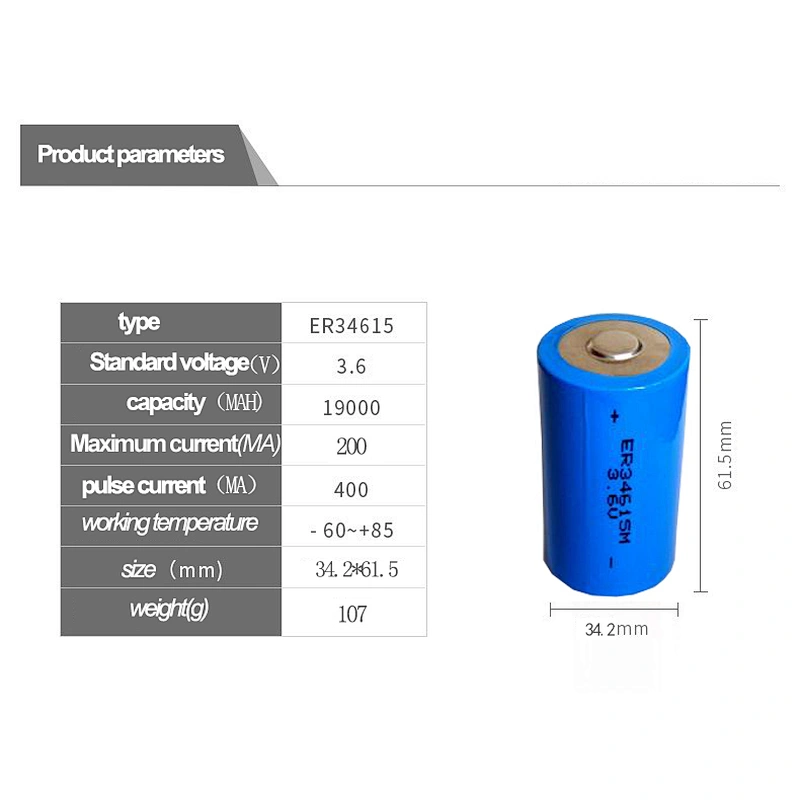

| ER34615 | D | 3.6V | 19000mAh | 5mA | 200mA | 400mA | 32.9mm*61.5mm | 100g |
| ER341245 | DD | 3.6V | 35000mAh | 10mA | 400mA | 500mA | 32.9mm*124.5mm | 195g |
| ER9V | 9.0V | 1200mAh | 1.5mA | 40mA | 100mA | 17.0*26.0*50 | 31g | |
